Product type：UART board module
Outline size(mm) ：105.5x67.15x3.05
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：95.04x53.86
Product application：industrial control systems, handheld electronic devices,
Visual angle：IPS
Backlight type or brightness：1000cd/m2
Interface mode：UART
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：5.0V

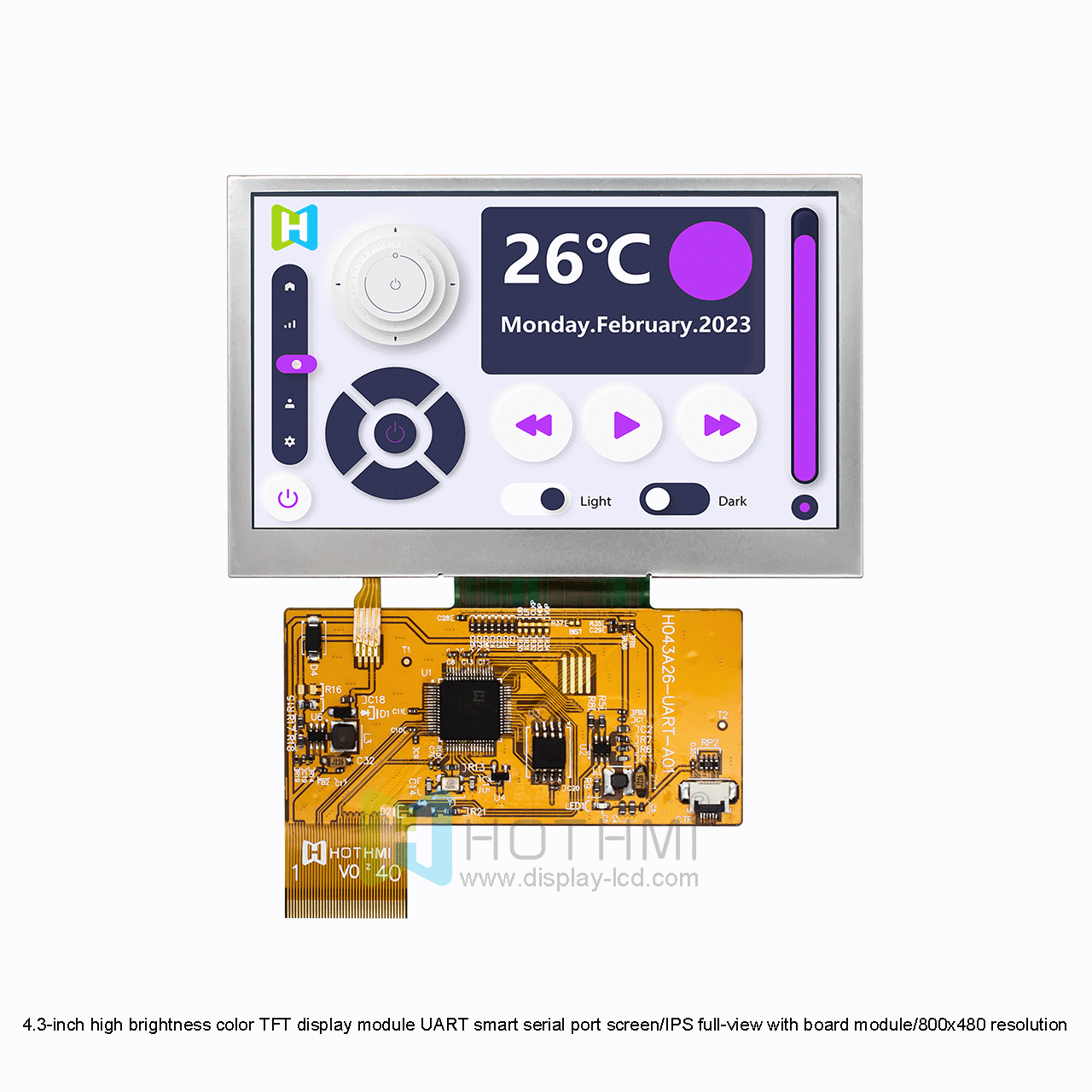

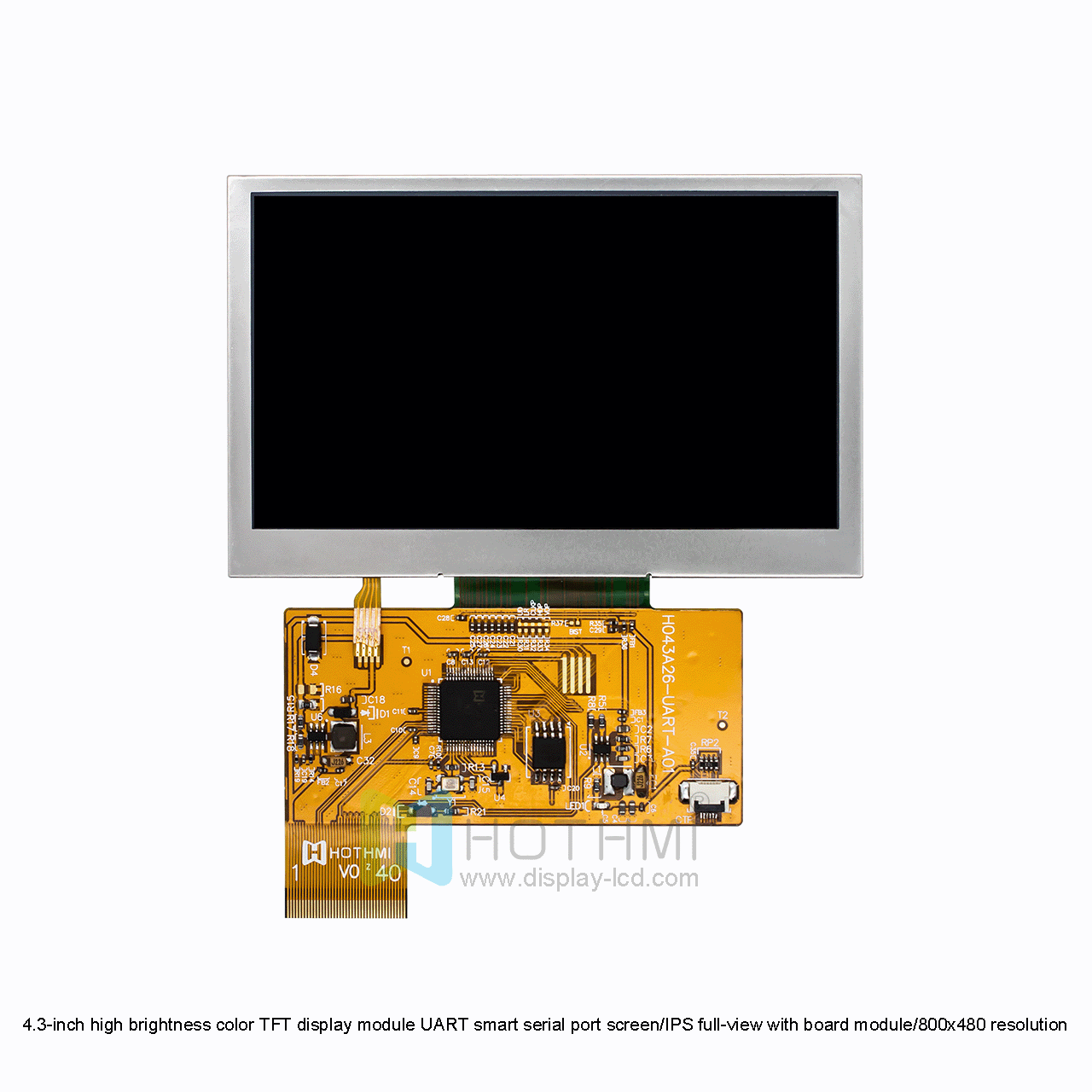

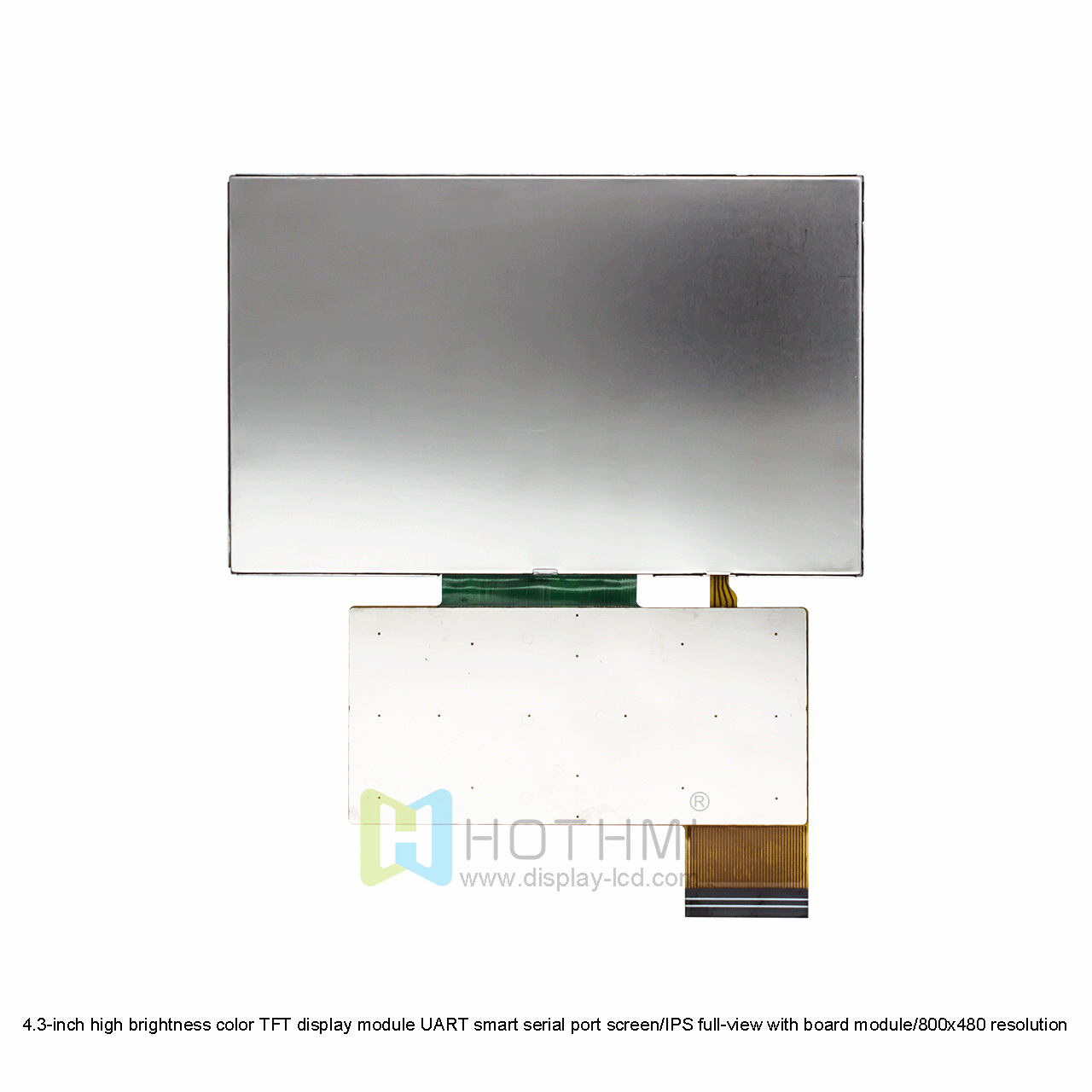

4.3-inch high-brightness color TFT display module/4.3-inch UART smart serial port screen/IPS full-view TFT with board module/800x480 resolution COF-H043A26-UART-A01 is a 4.3-inch color serial port display. It is an IPS full-view display that will show good results no matter which direction you watch it from. Brightness LED backlight is 1000 nits, high brightness display. This model is a version with capacitive touch function, multi-touch, smooth and unobstructed. This transmissive LCD requires a 5V voltage power supply, UART interface, HOTDISPLAY UART display consists of two parts: serial screen hardware and attached serial screen software:
1. The hardware part includes processor, LCD screen, resistive touch screen or capacitive touch screen, FLASH storage, RS232 or 485 serial port chip, audio and video decoding chip, SD card slot, etc. Some models include WIFI, 4G, Bluetooth, voice recognition, face recognition, fingerprint recognition and other modules,
2. The operating software is generally divided into two parts, namely the system software running on the UART display and the interface development software "UI Editor" running on the PC Windows operating system, and EZUI is the program debugging software.
The user first uses EZUI (ATFC) to create an ".ERS file", and then downloads the compiled ".ERS file" to the FLASH of the serial display through the UART port or USB port or SD card of the serial display. HOTDISPLAY UART display is widely used in dozens of industries and fields such as industrial automation, power, telecommunications, environmental protection, medical, finance, petroleum, chemical, transportation, energy, geology, metallurgy, public inquiry monitoring, smart home appliances, transportation tracks, data centers, charging piles, power medical, national defense security, shared equipment, etc.
Some industries and applications include industrial control panels, consumer products, home appliances, etc. Our displays are RoHS compliant and adhere to strict environmental and safety standards
