Product type：TFT Display
Show contents：480x800
Outline size(mm) ：60.86x102.57x2.3
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：56.16x93.6
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：450cd/m2
Connection PIN Number：FPC-45 pin
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7701S

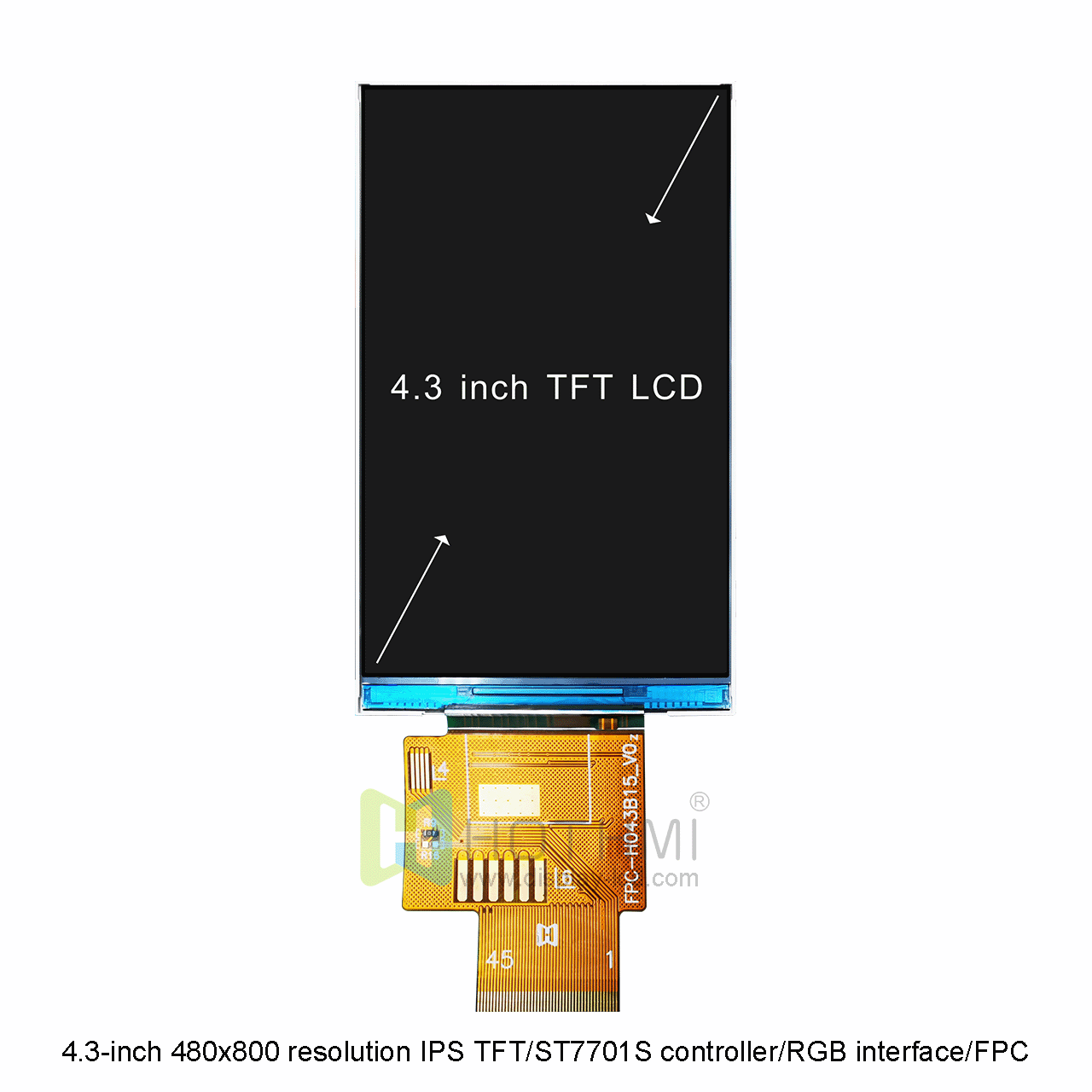

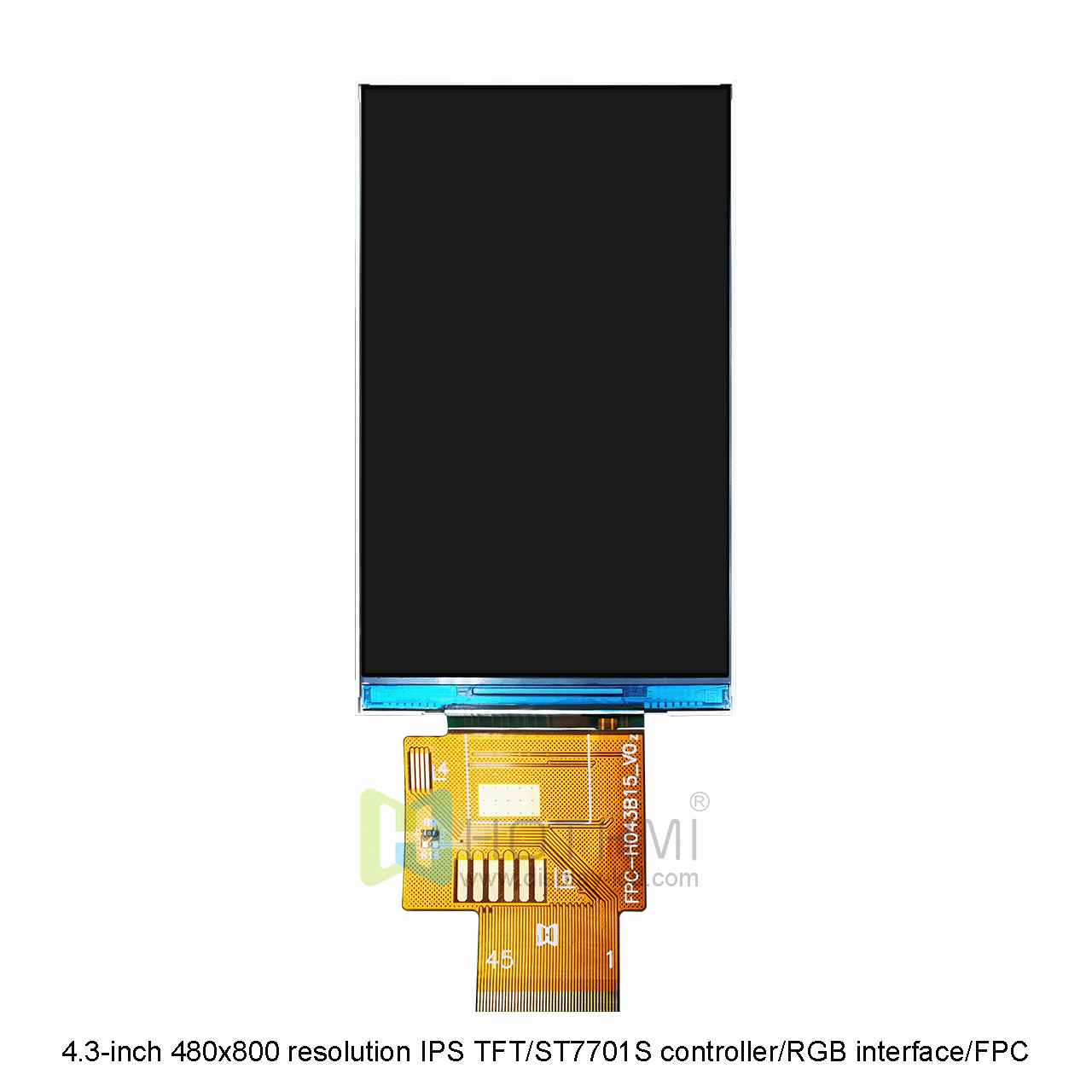

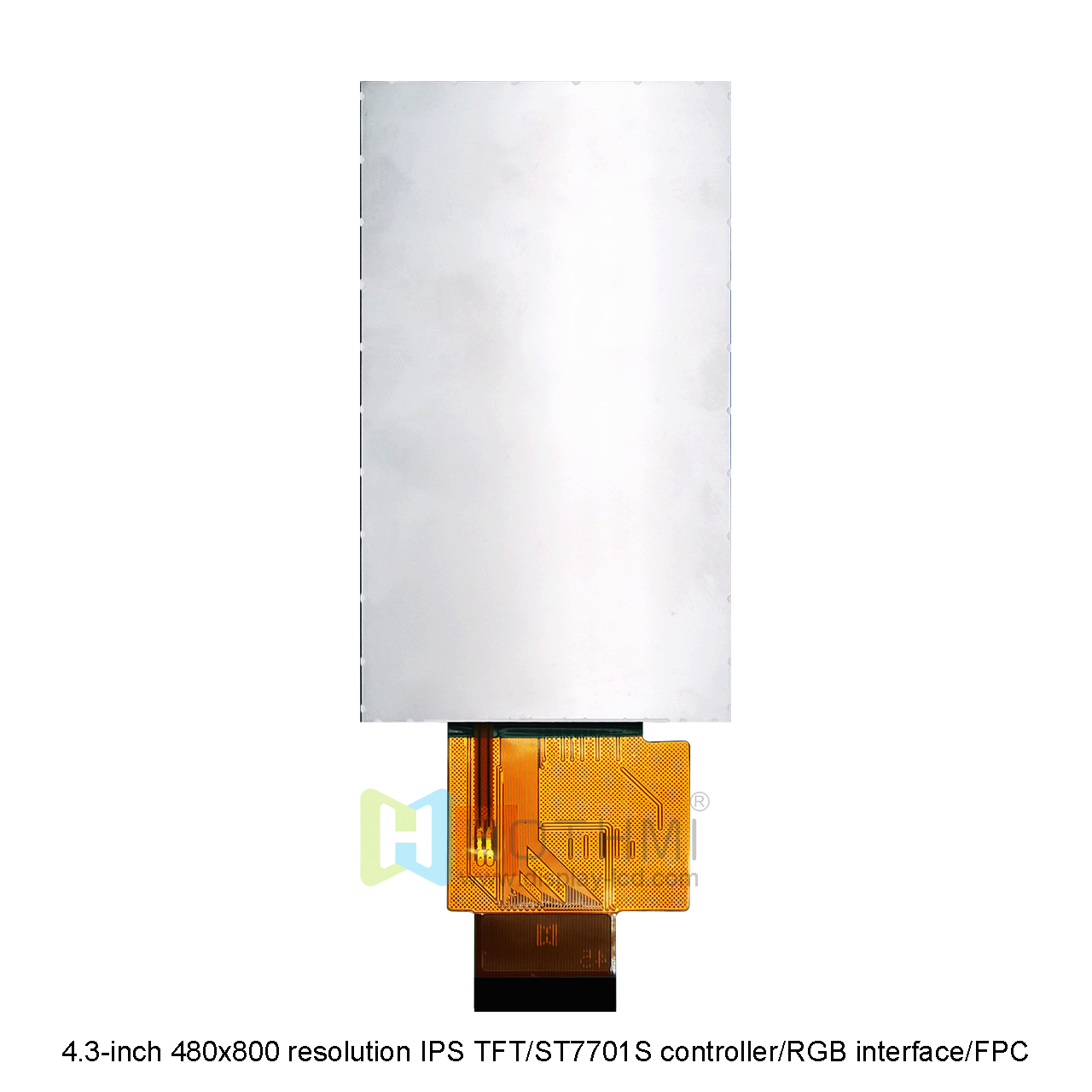

4.3-inch 480x800 resolution IPS wide temperature TFT/ST7701S controller/RGB interface/FPC plug-in/STM32/RK TFT-H043B15WVIST4N45 This display is a full-view display, no matter which angle you watch it from, it has a good viewing effect. Controlled by ST7701S, it is a wide-temperature industrial-grade display with an operating temperature range of -20 degrees Celsius to +70 degrees Celsius. This model uses FPC connection, and FPC requires a connector. Just connect with our optional welding FPC connector, which is easy to insert or remove. This display has a brightness of 450cd/m2. If you need higher brightness, we can achieve it for you by adjusting the arrangement and number of backlights. This model is a non-touch version, and we also provide models with capacitive touch for the same product.
For the use and detailed instructions of the display, we have also prepared a detailed tutorial, which includes interface information, demo code and development kit. You can contact us to request and learn. Our displays are all RoHS compliant and comply with strict environmental and safety standards.
