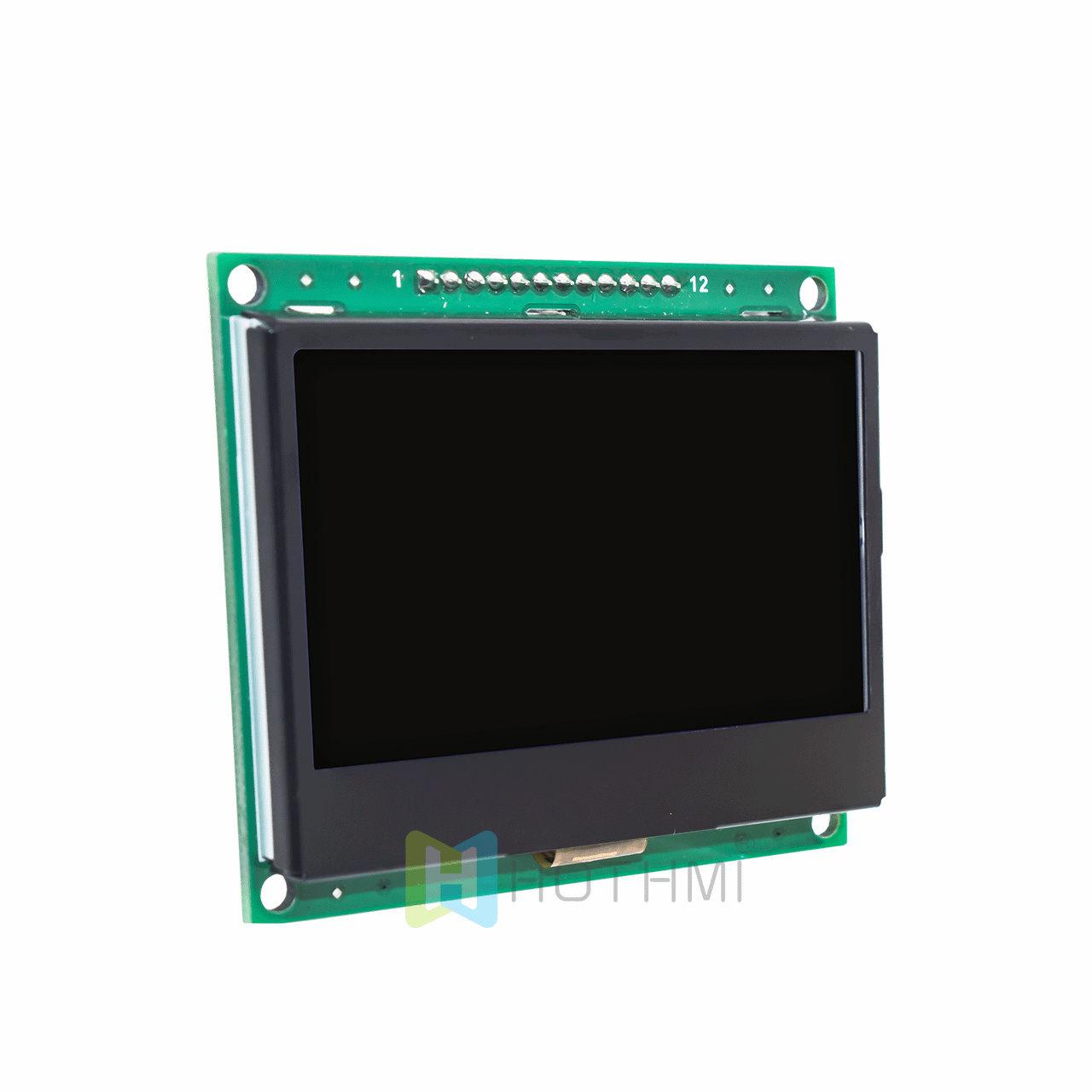

Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：71.0x62.0x7.8
Size of View Window(mm)：65.5x38.0
Display size(mm) ：60.77x32.93
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white

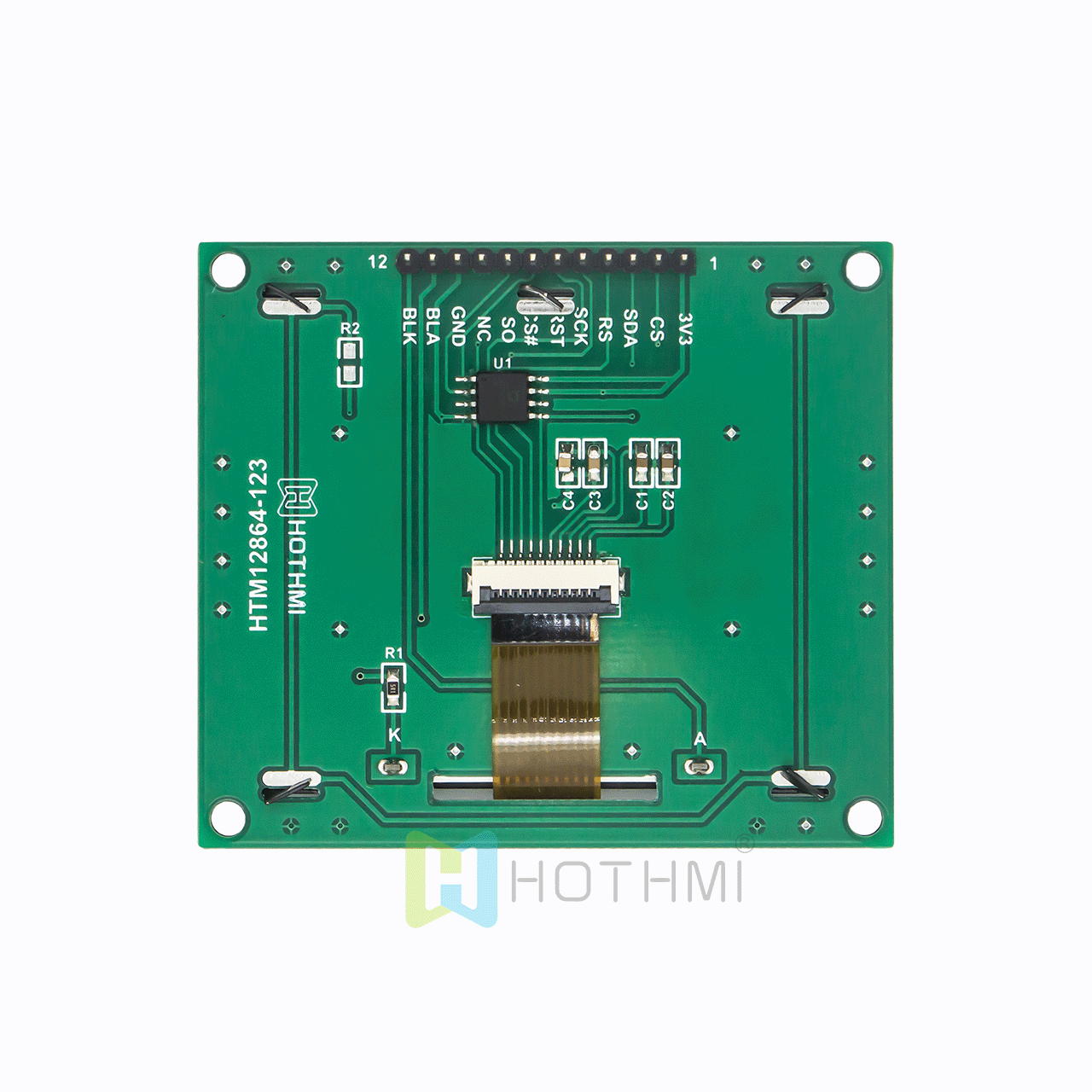

Connection PIN Number：12PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7567

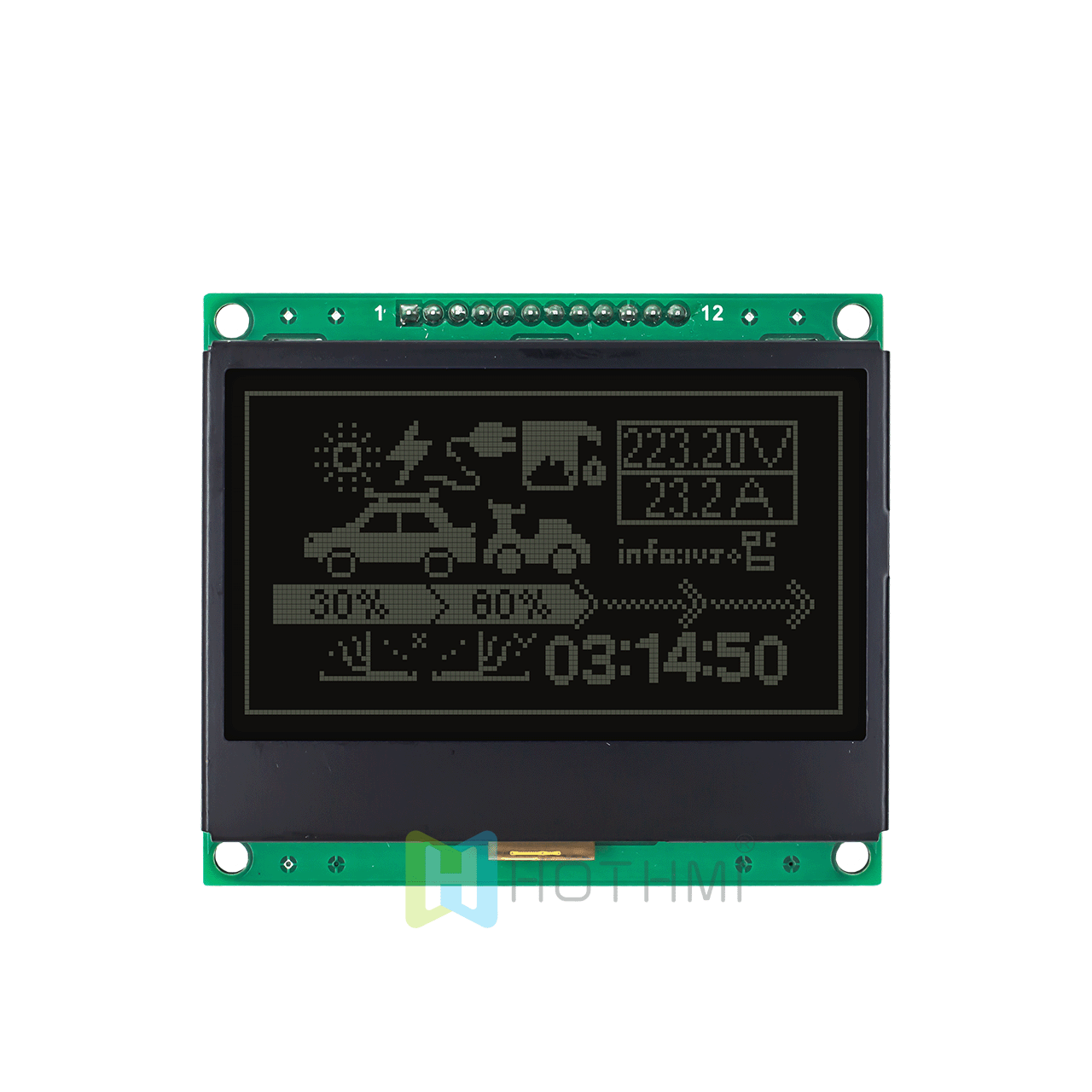

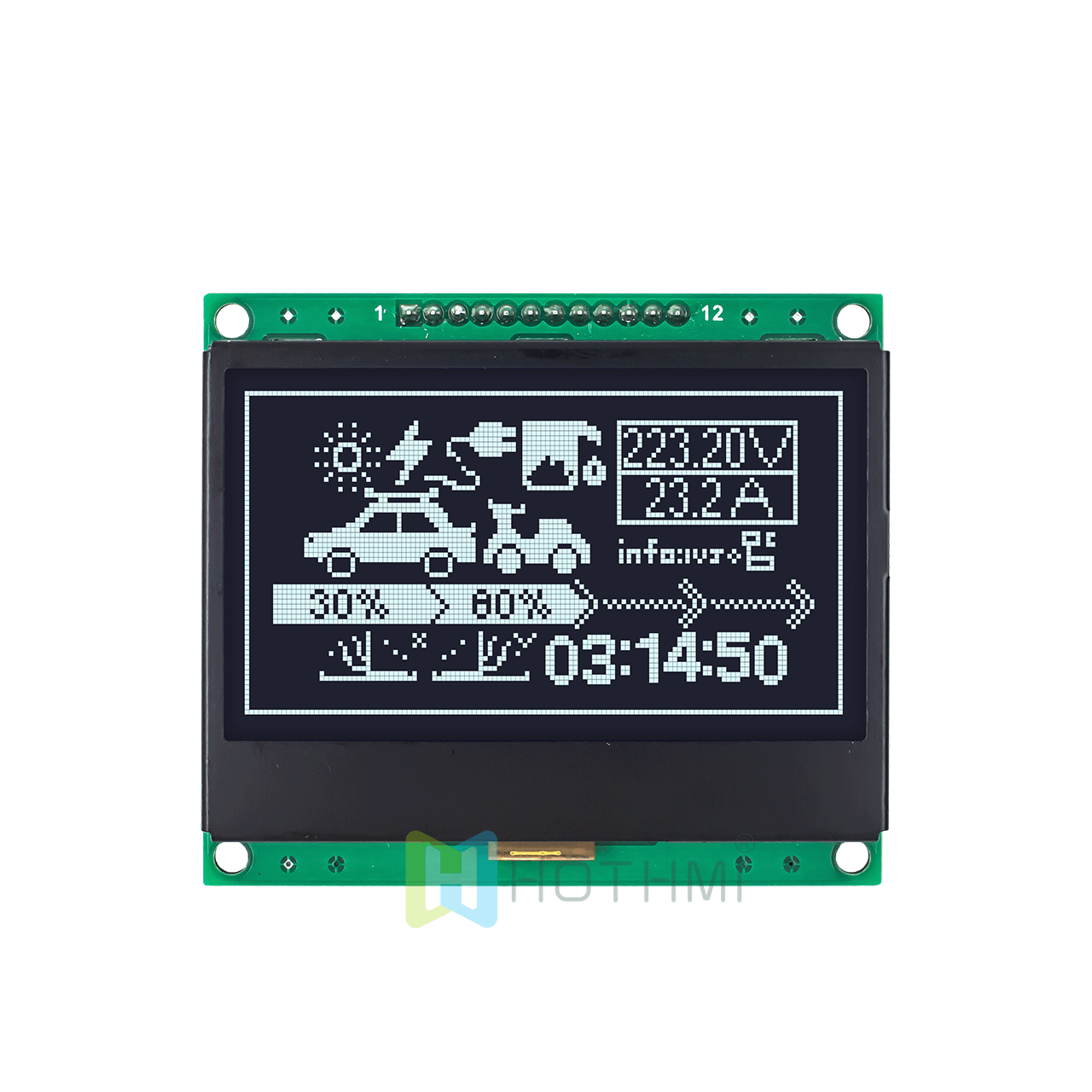

This Hot Display Graphic LCD Display Module displays white pixels on a black background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This Graphic LCD Display Module has a built-in negative voltage. It is also fully compatible with Arduino, allowing seamless connection with other electronic systems for a wide range of applications. This product is designed to withstand harsh operating conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. The optimal viewing angle of this LCD is 6:00, it operates on a 3.3V supply voltage, and is RoHS compliant.
