Product type：Graphic LCD Module
Show contents：240x160
Outline size(mm) ：84.5x71x5.5
Size of View Window(mm)：77.5x48
Display size(mm) ：77.42x44.96
Point spacing(mm)：0.261x0.261
Product application：Instruments
Visual angle：6H
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7529

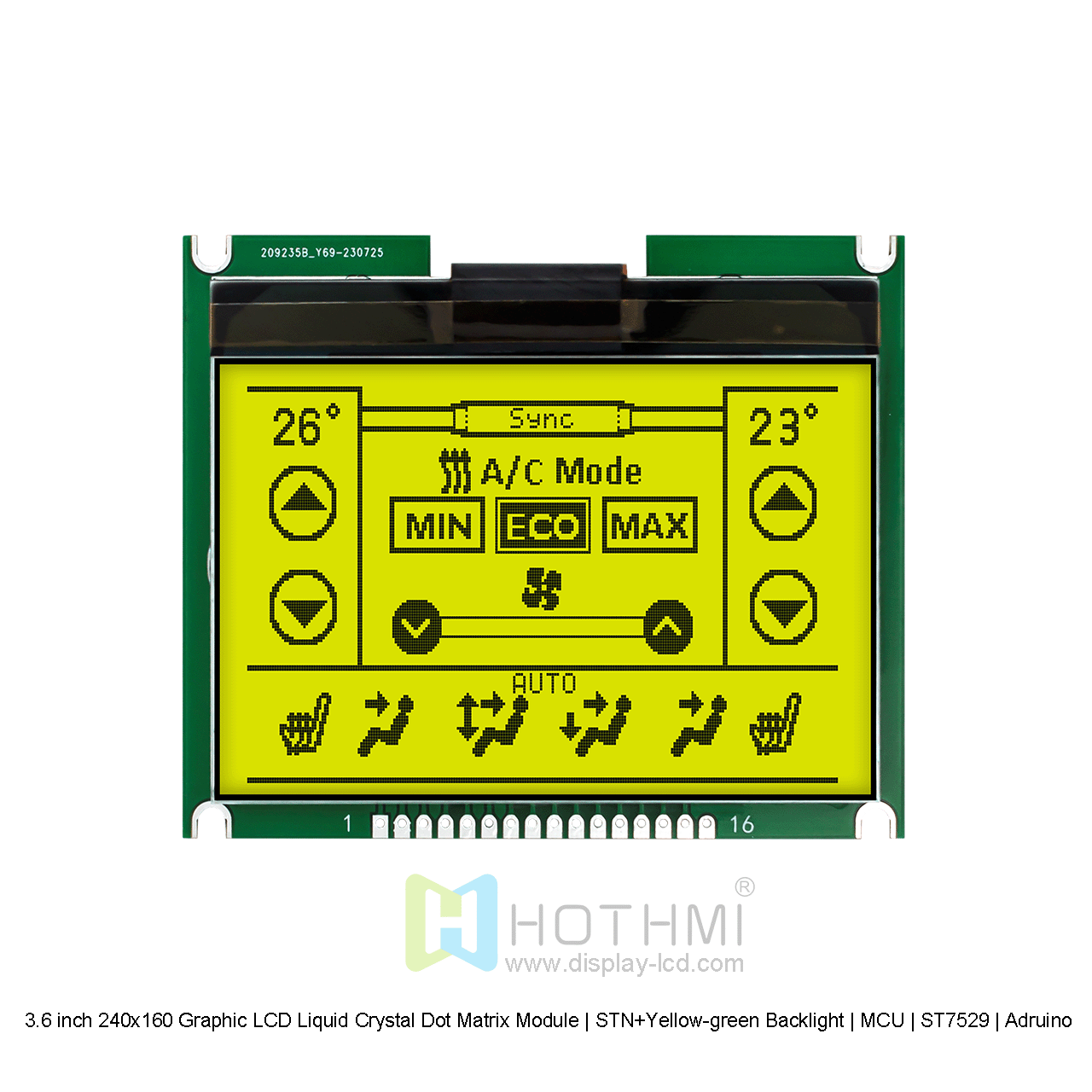

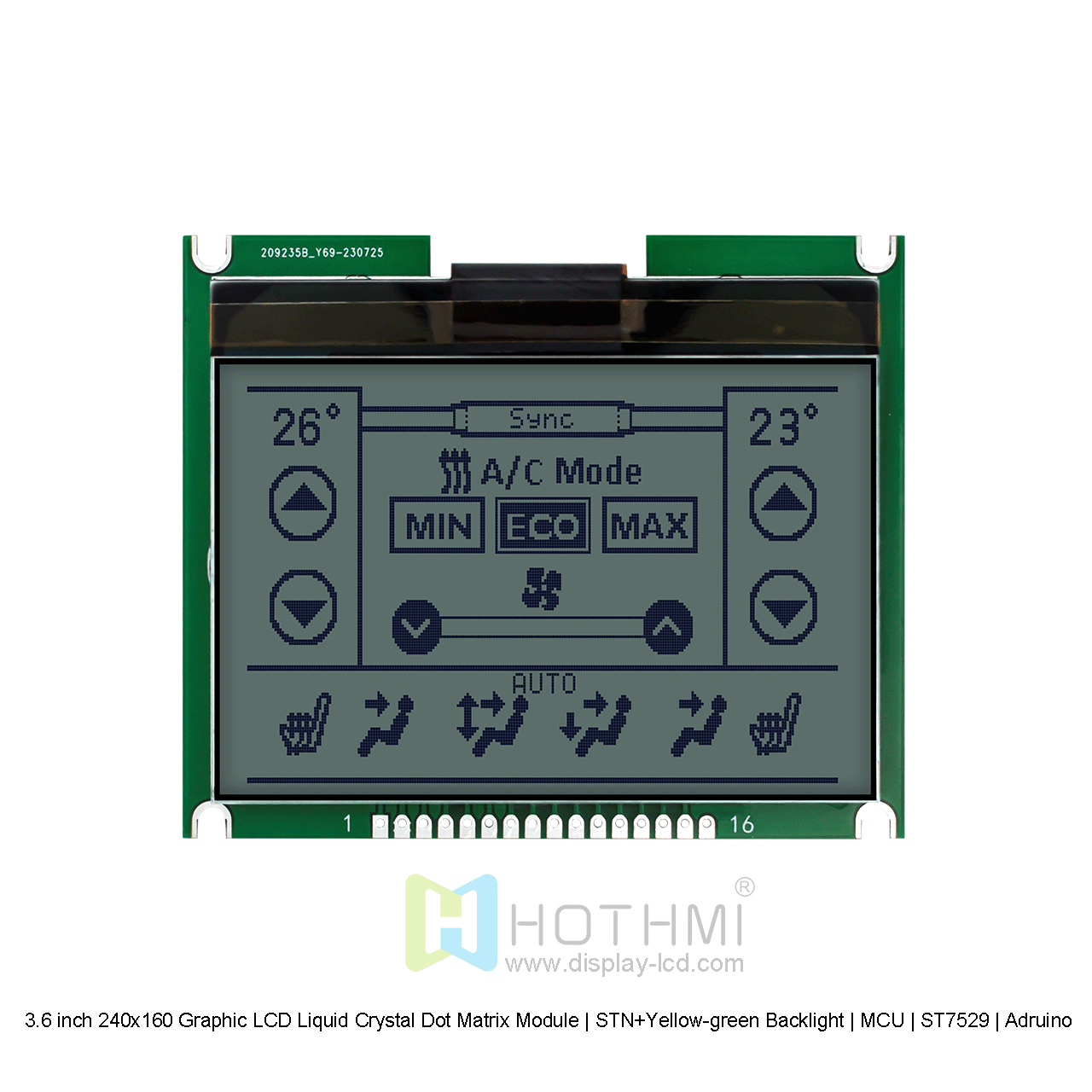

This HOT Display 240x160 Graphic LCD Display Module displays illuminated dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflectivity to reflect the pattern to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
The Graphic LCD Display Module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
