Product type：COG
Show contents：128x64
Outline size(mm) ：53.2x37.8x2.8
Size of View Window(mm)：49.2x27.0
Display size(mm) ：40.92x24.28
Point spacing(mm)：0.38x0.32
Product application：Instruments
Visual angle：6H
Connection PIN Number：FPC-10PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：-20~70℃

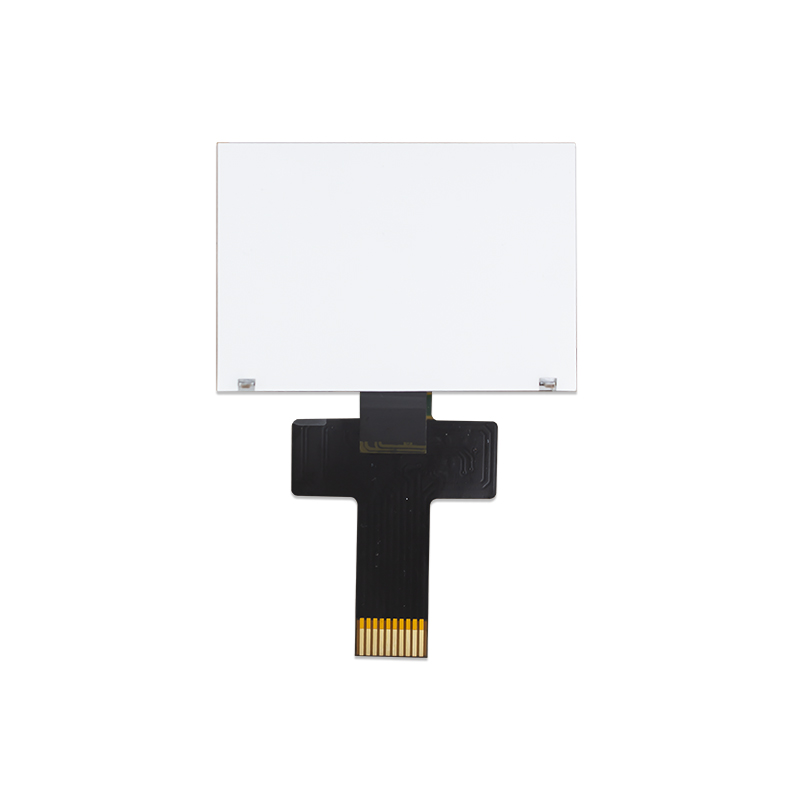

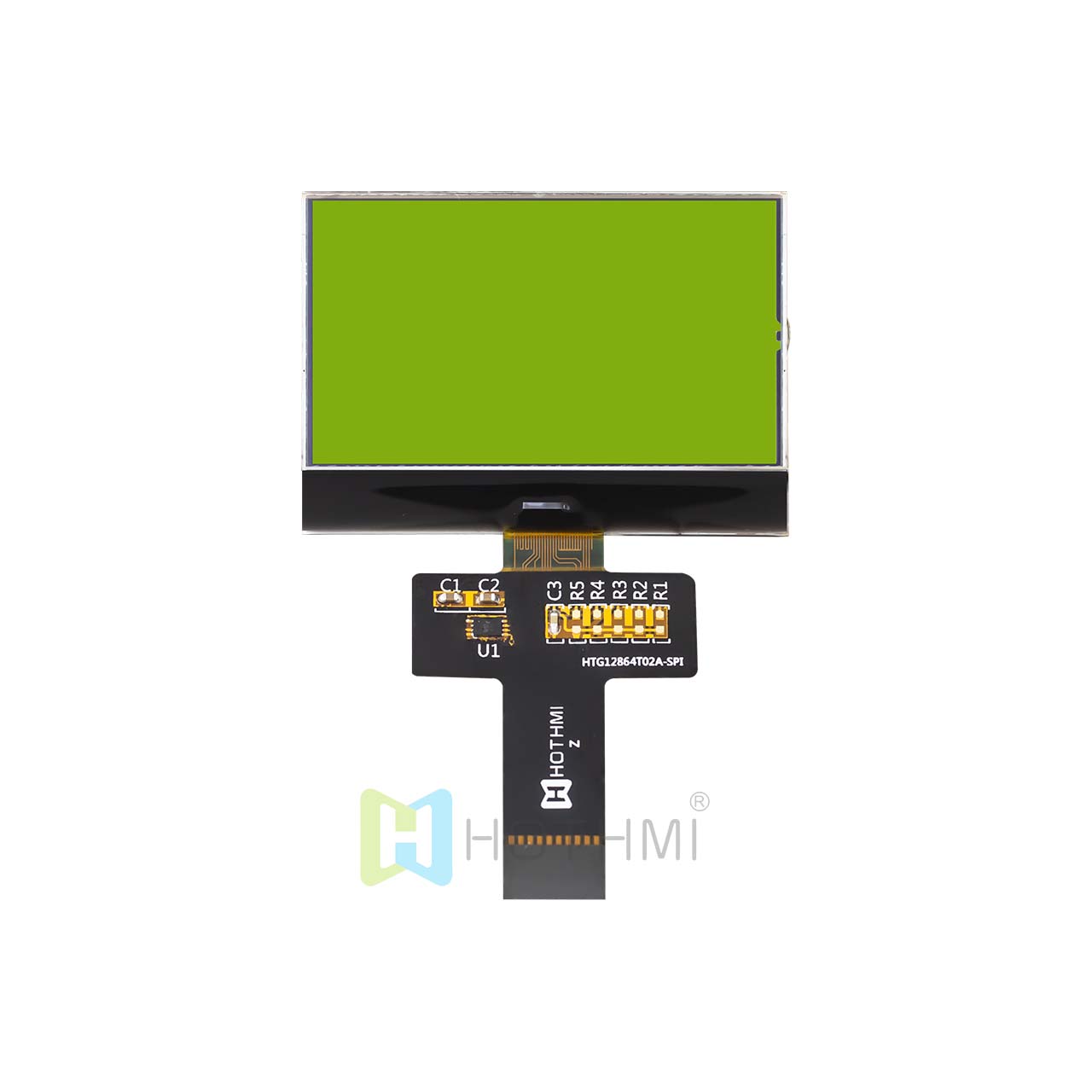

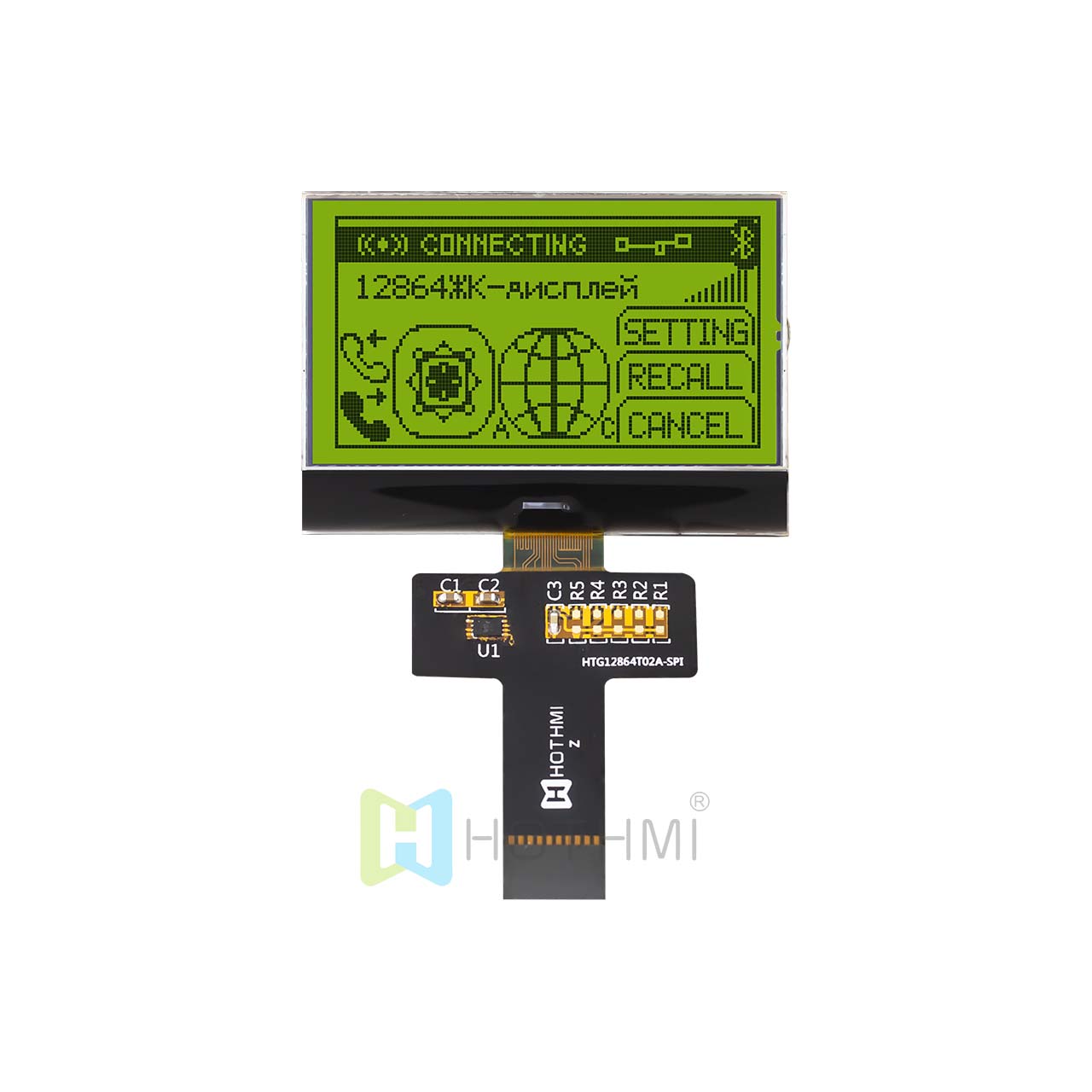

This 2.2" HOT Display 128x64 Graphic Chip on Glass (COG) LCD module displays dark pigments on a yellow-green background. This transmissive LCD display is engineered to reflect the image to the viewer in ambient light through the polarizer, and to make the graphics clearly visible when used in darker environments, providing optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
The display of this graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
