Product type：COG
Show contents：128x64
Outline size(mm) ：53.2x37.8x2.8
Size of View Window(mm)：49.2x27.0
Display size(mm) ：40.92x24.28
Point spacing(mm)：0.38x0.32
Product application：Instruments
Visual angle：6H
Connection PIN Number：FPC-10PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7567

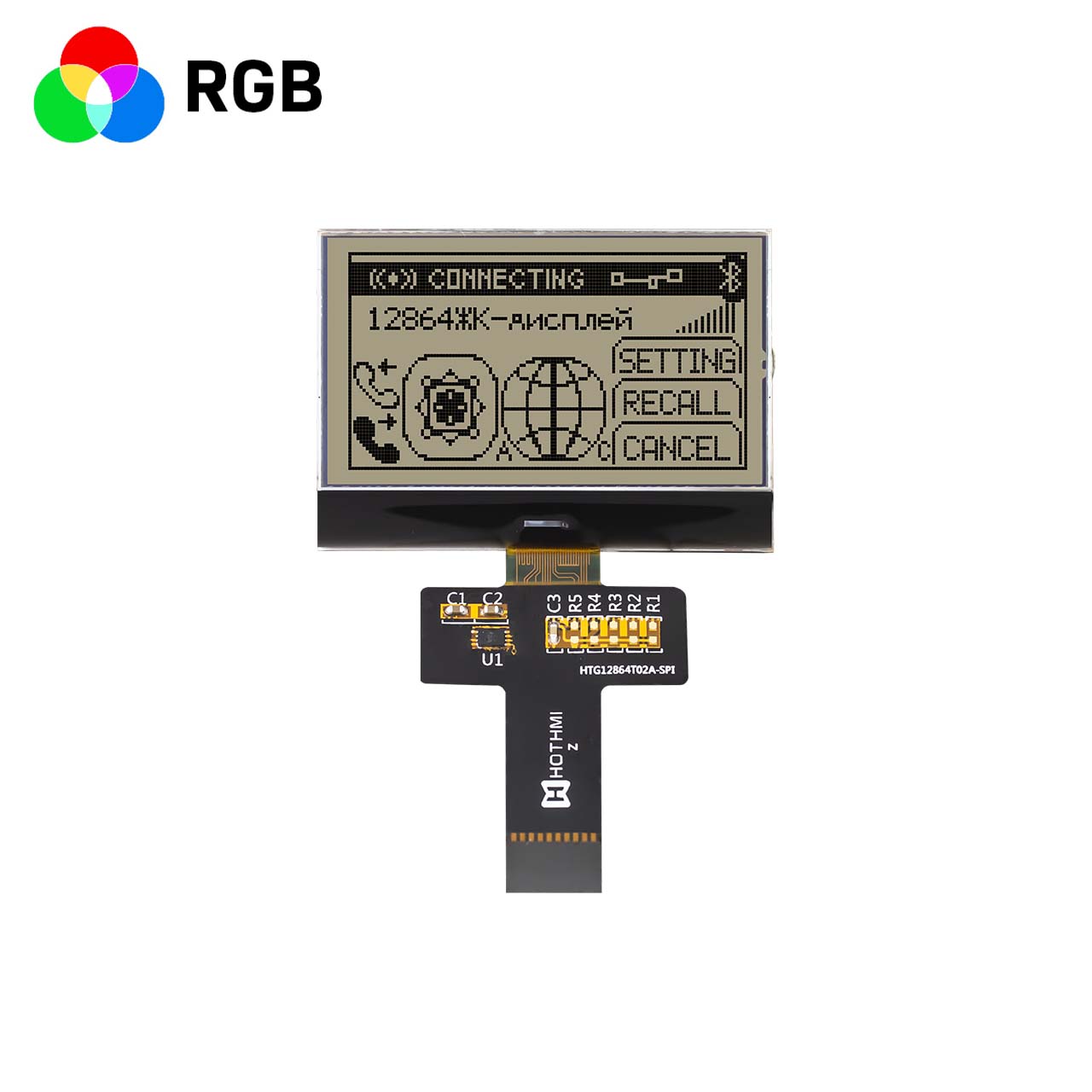

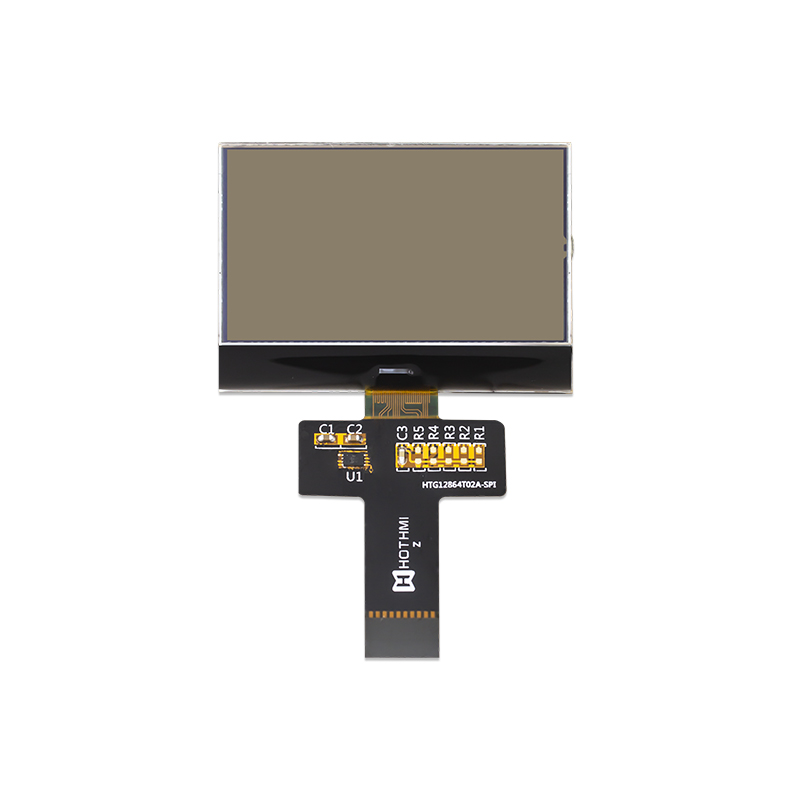

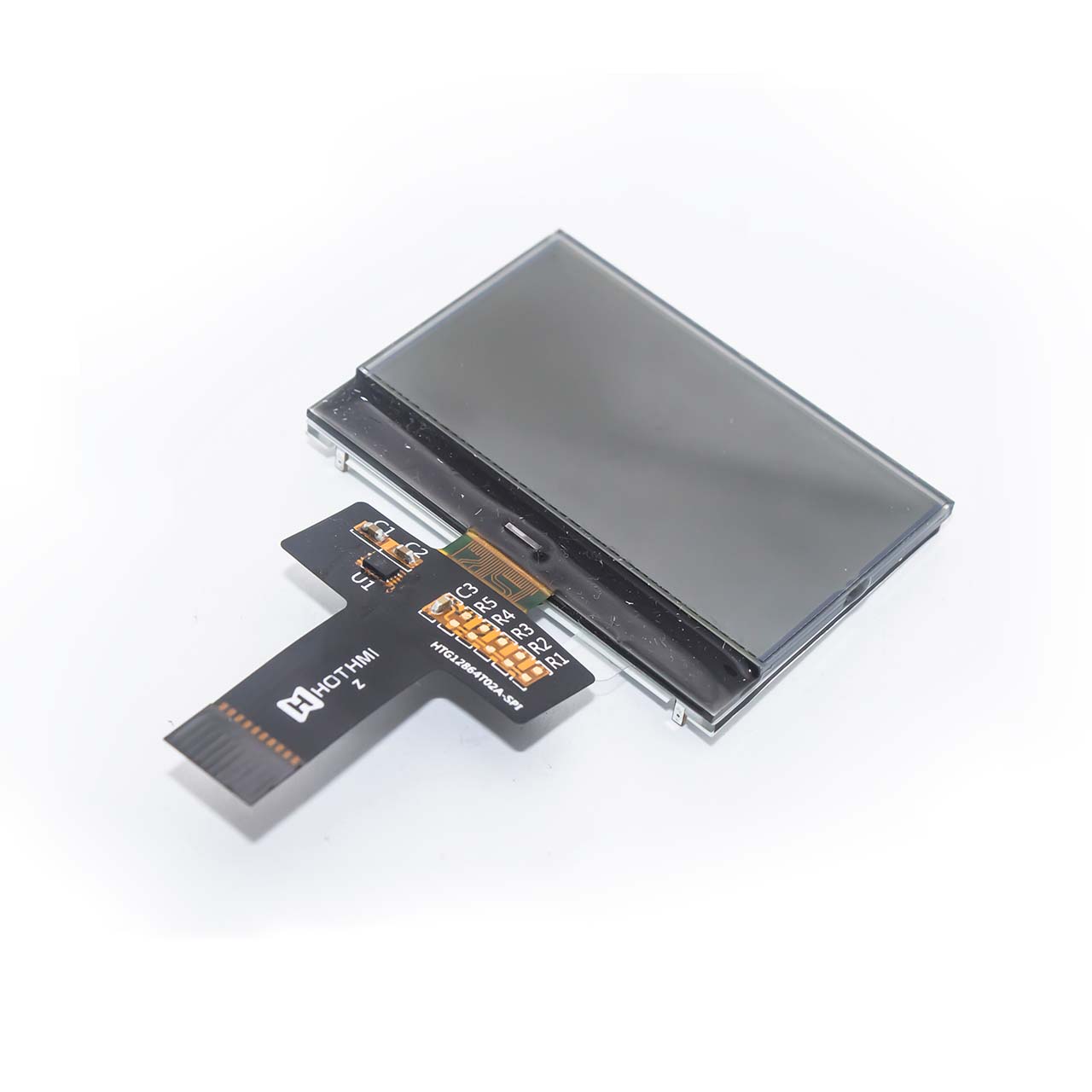

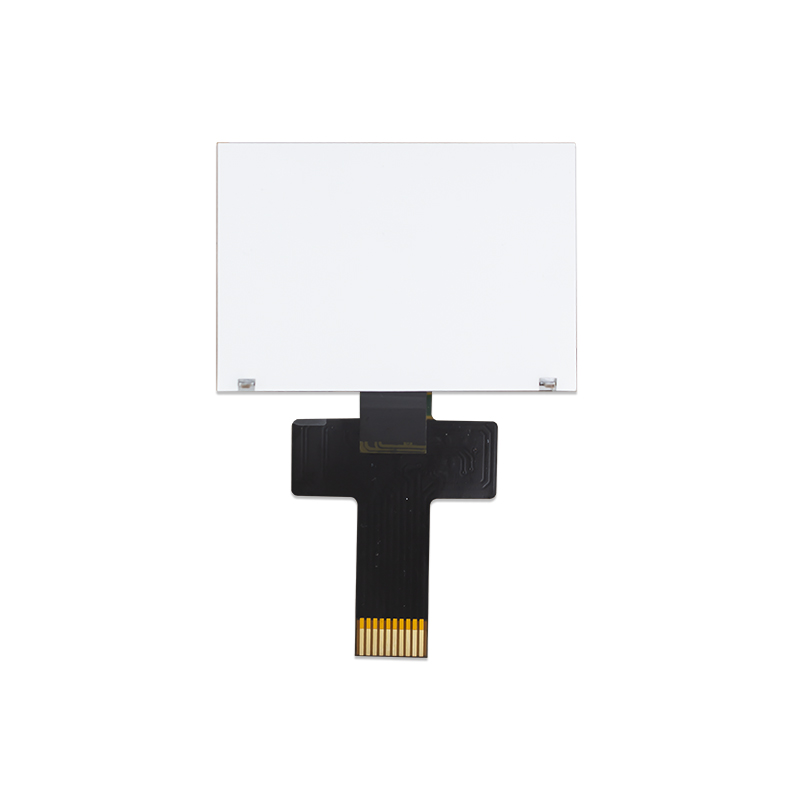

This 2.2" HOT Display 128x64 Graphic Glass Chip (COG) LCD module displays dark pigments on a red, green and blue background. This transmissive LCD display is carefully designed to increase the brightness of the display under ambient light, and the backlight is fully transparent under the full penetration of the polarizer, so that the viewer can clearly see the image; when used in darker environments, the backlight makes the graphics clearly visible, providing optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
The display of this graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
