Product type：COG Graphic LCD
Show contents：128x64
Outline size(mm) ：28.55x20.1x1.7
Size of View Window(mm)：26.15x13.9
Display size(mm) ：23.02x11.5
Point spacing(mm)：0.18x0.18
Product application：Instruments
Visual angle：6H
Backlight type or brightness：STN(+) Yellow-green
Connection PIN Number：FPC-12PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：ST7565R

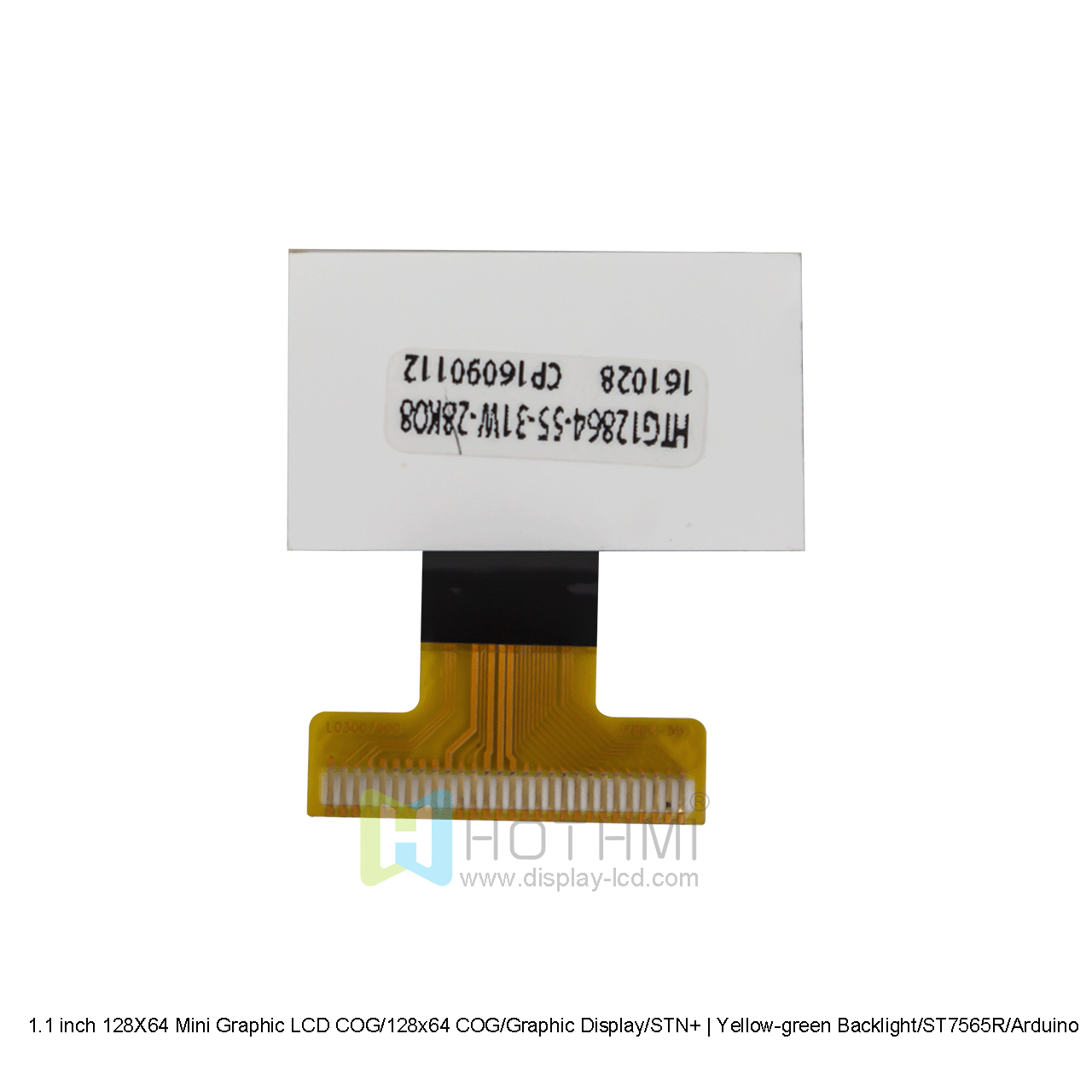

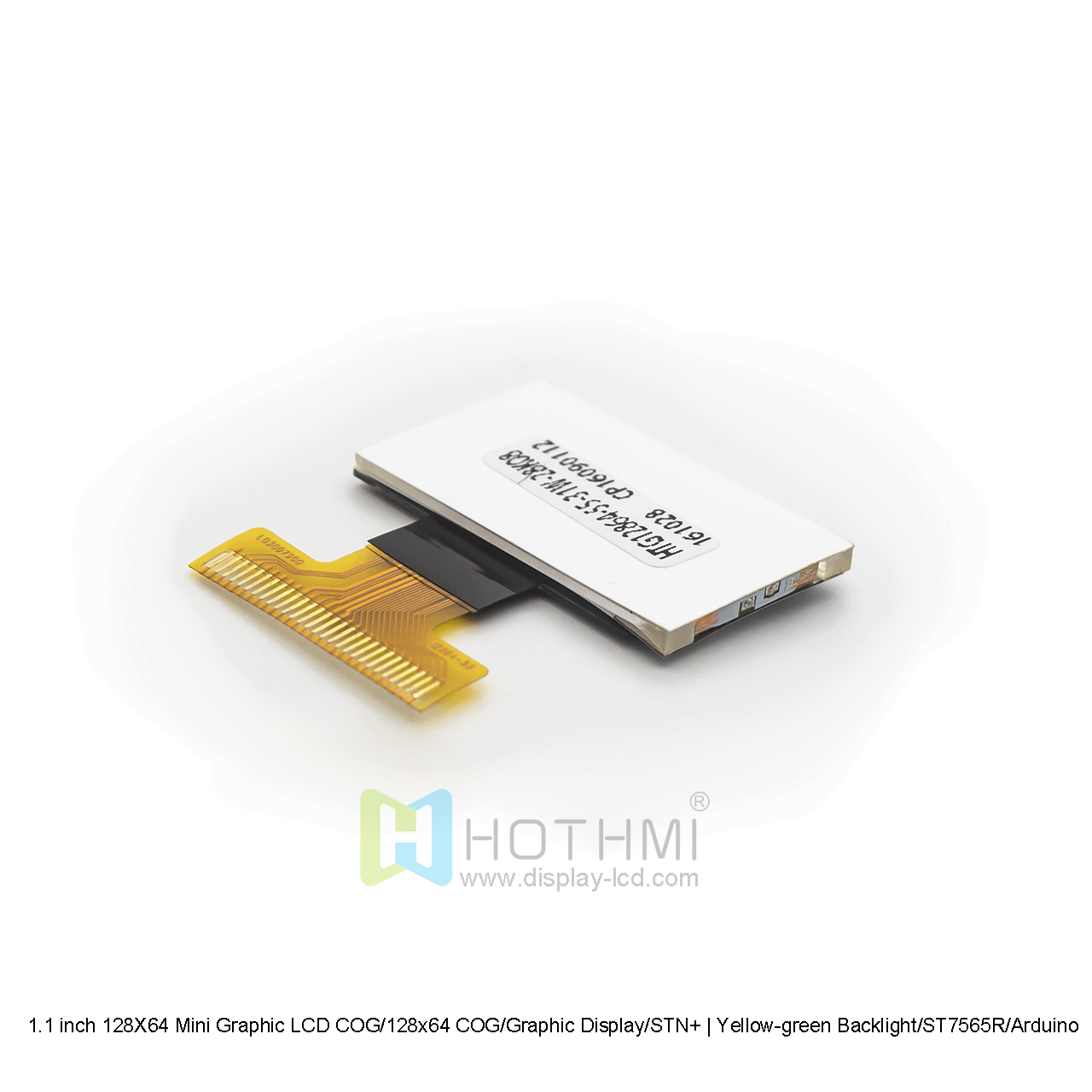

This HOT DISPLAY 1.1 inch 128X64 Mini Graphic LCD COG/128x64 COG/Graphic Display/STN+ | Yellow-green Backlight/ST7565R/Arduino displays dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility under various lighting conditions in many different environments. Under the translucency of the polarizer, the image is reflected to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. Mini size, exquisite and beautiful, clear display, industrial control level support for long-term use. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
