Product type：TFT Module
Show contents：172x320
Outline size(mm) ：19.65x48.0x9.2
Size of View Window(mm)：1.5
Display size(mm) ：1.5
Effective size(mm)：14.65x32.83
Product application：Mini home appliances
Visual angle：IPS
Backlight type or brightness：300cd/m2
Connection PIN Number：6pin
Interface mode：RS485
Special instructions：IPS
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7796

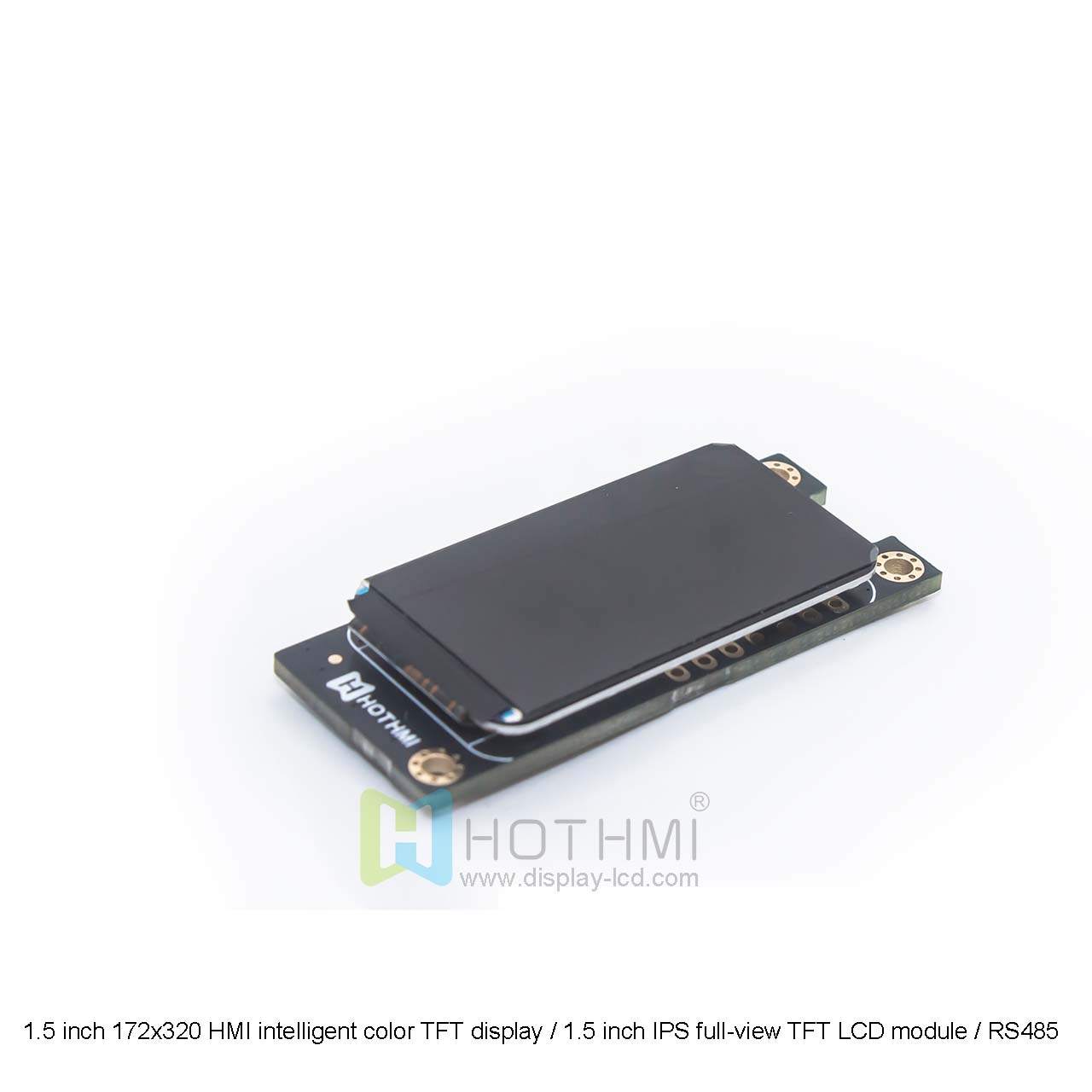

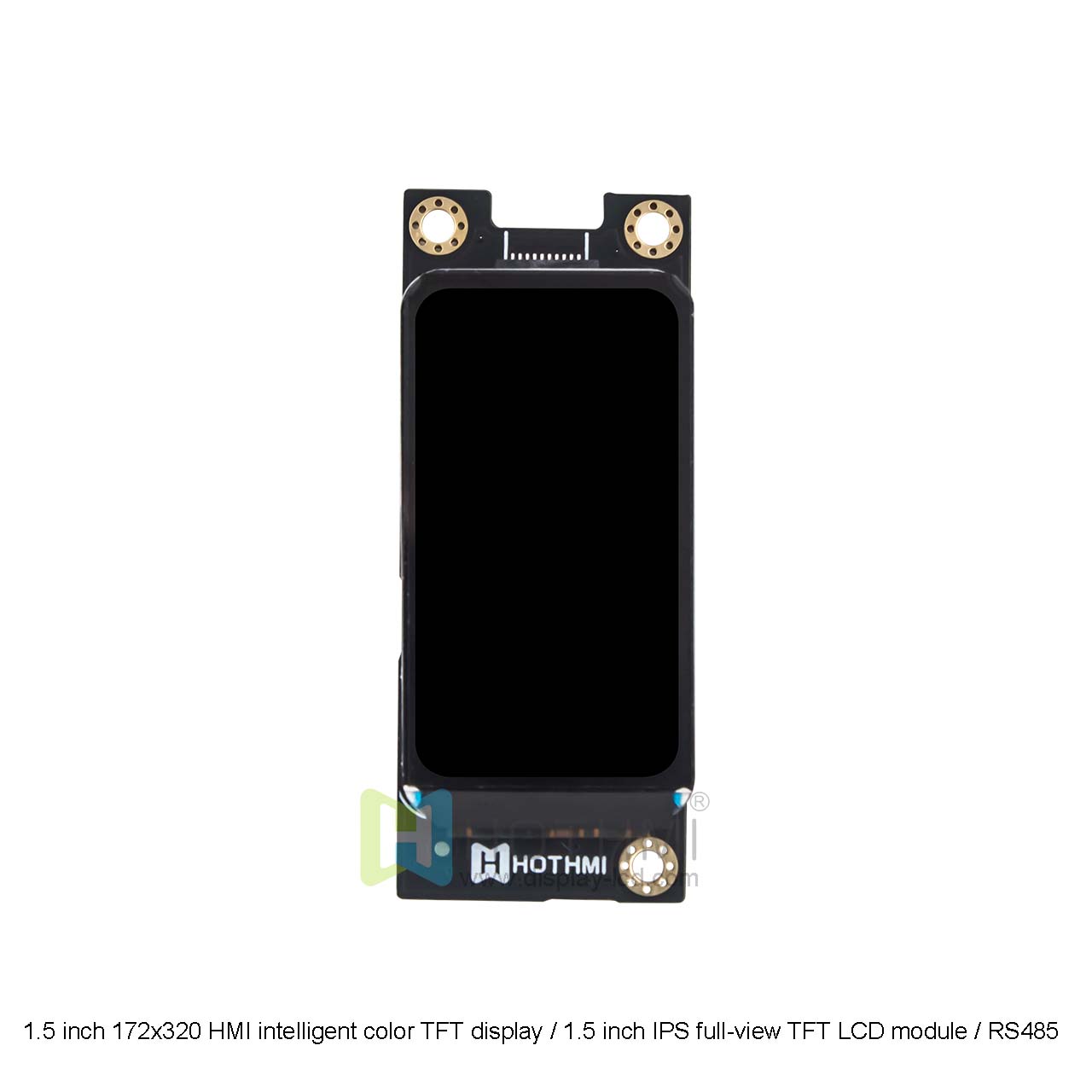

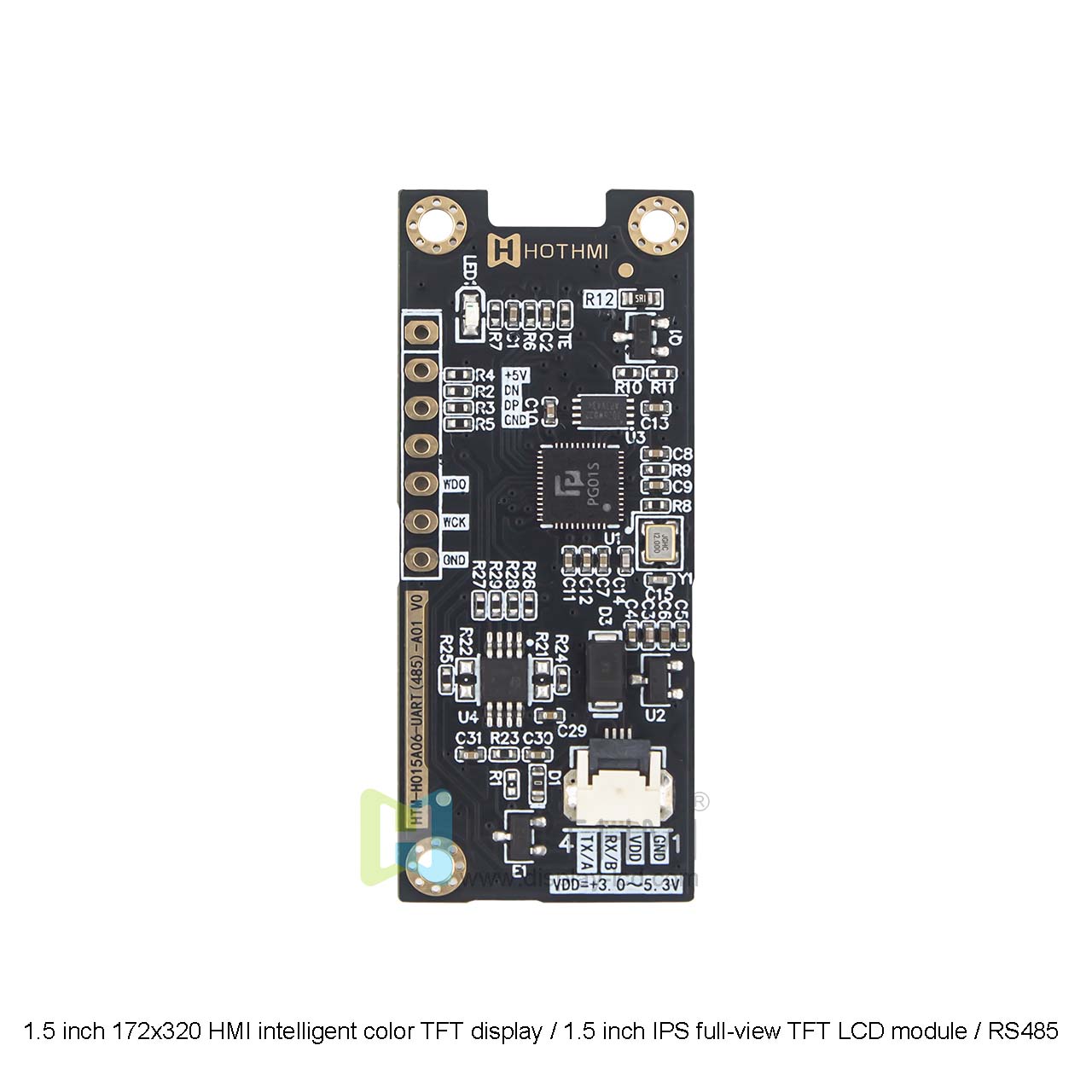

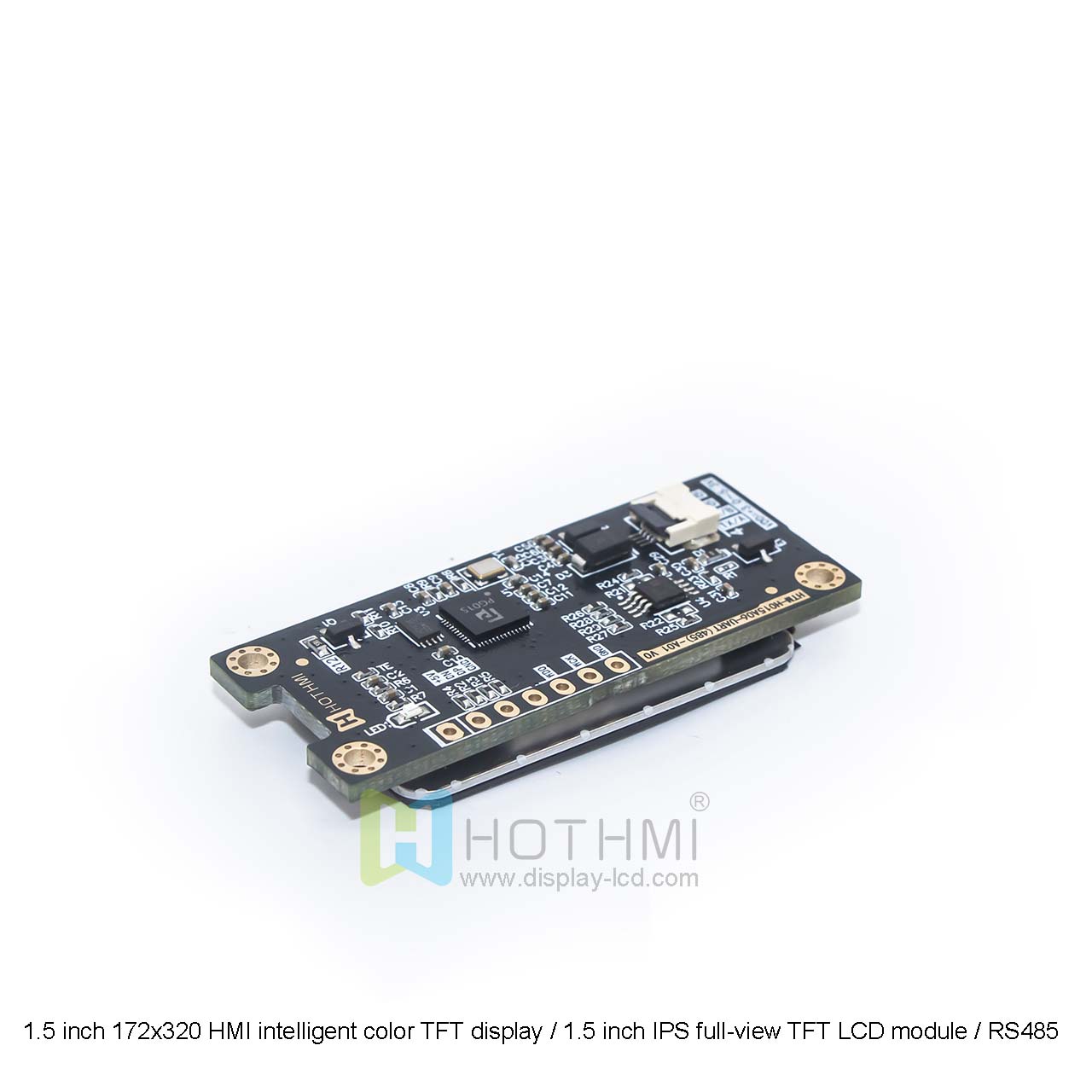

1.5 inch 172x320 HMI Smart UART Color TFT Display/IP Full Viewing Angle/RS485 Interface Serial Port Screen HTM-H015A06-485-A01, this 1.5 inch module has a resolution of 170x320 pixels and is assembled onto a custom PCB designed by us. In addition, it is equipped with a 300 nits brightness LED backlight. Since this LCD has built-in IPS technology, the display has amazing clarity, excellent color reproduction, better image consistency, and high contrast at full viewing angles. The ultra-bright backlight and 3M Brightness Enhancement Film (BEF) make this TFT readable in bright conditions such as direct sunlight. Although this transmissive LCD does not feature a touch screen, its impressive quality makes it an excellent choice for projects that require high-end visual output without touch functionality. With EzUI. E (simple and easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop full-color graphic touch screen human-machine interface, allowing users to easily design and develop color LCD modules.
The biggest feature of the EzUI series intelligent LCD display module is its simple and easy to use and rich features. Users can choose simple or complex usage methods to achieve the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, configure controls and respond to settings of the human-machine interface, and then copy the resource files generated by the tool software to the EzUIH series module to complete the required human-machine interaction interface design and production without programming the microcontroller or other controllers. In order to meet the needs of users with special requirements, the EzUIH series modules still retain most of the display control instructions, allowing users to control the module display more freely. EzUIH is a functional and performance enhanced version of the EzUI series. Although the hardware platform is different, it is fully compatible with the functions of the EzUI series.
