COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

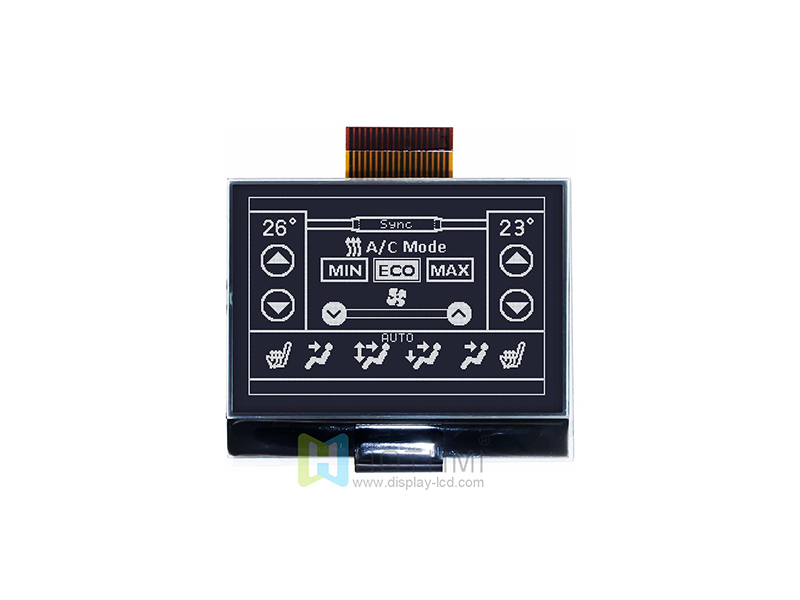

| 2.6" 240X160 Graphic COG LCD | DFSTN- Black Background White Text Display | SPI Interface | Arduino HTG240160L-41W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

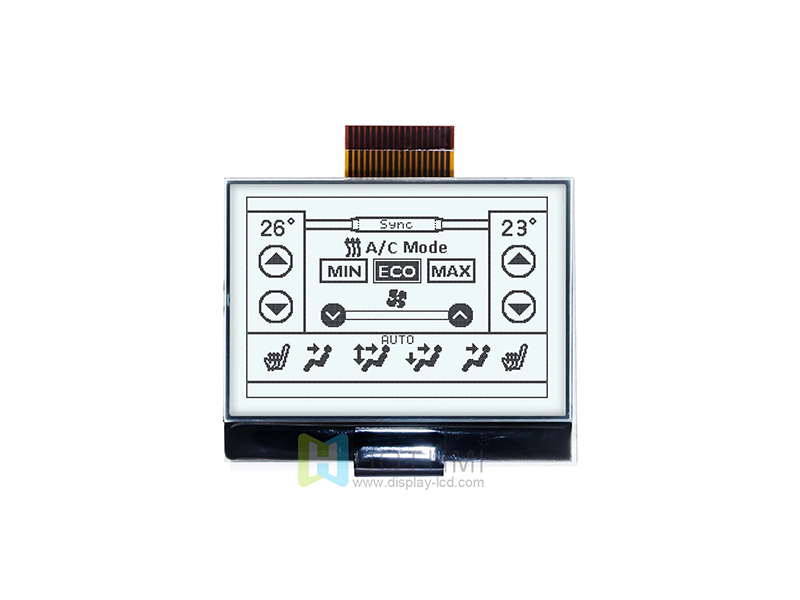

| 2.6" 240X160 Graphic COG LCD/FSTN+ Display /SPI/Arduino HTG240160L-31W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||
| 2.6 inch 240X160 graphic COG LCD screen/STN+yellow-green display/SPI interface/Arduino HTG240160L-01Y-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

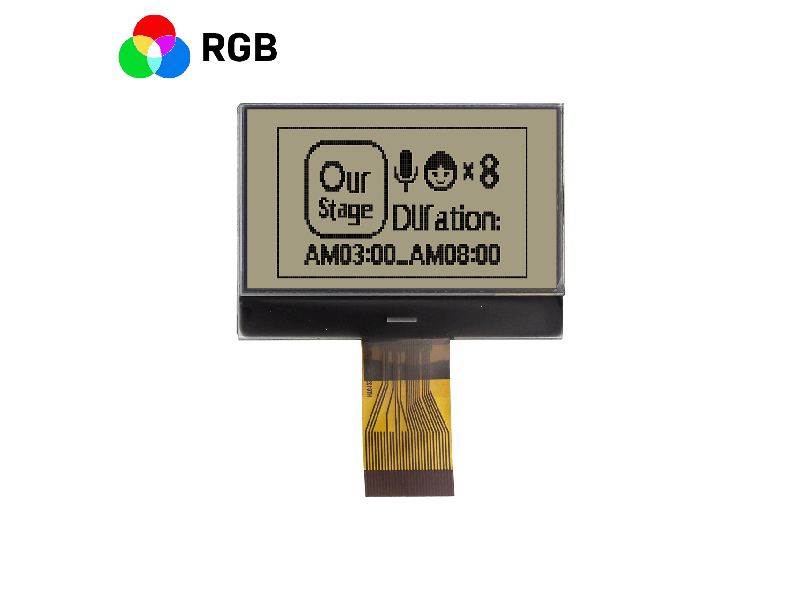

| 2.2-inch 128x64 graphic dot matrix COG LCD display/red, green and blue backlight display/ST7567/Arduino HTG12864-20C-35S-28C05-V05 | Graphic LCD Module | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | R/G/B | 0.38x0.32 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |

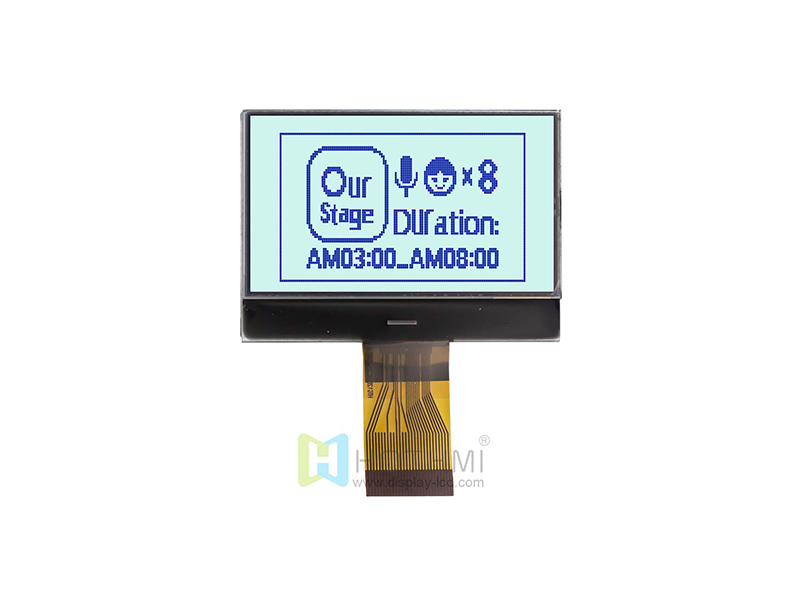

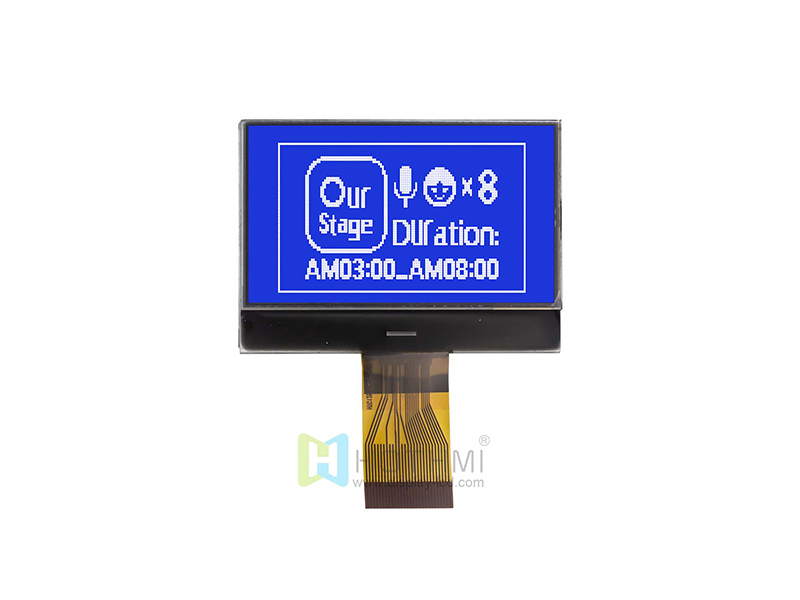

| 2.2-inch 128x64 graphic dot matrix COG LCD display/STN-/ST7567 HTG12864-20C-25W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | YG | 0.38x0.32 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |

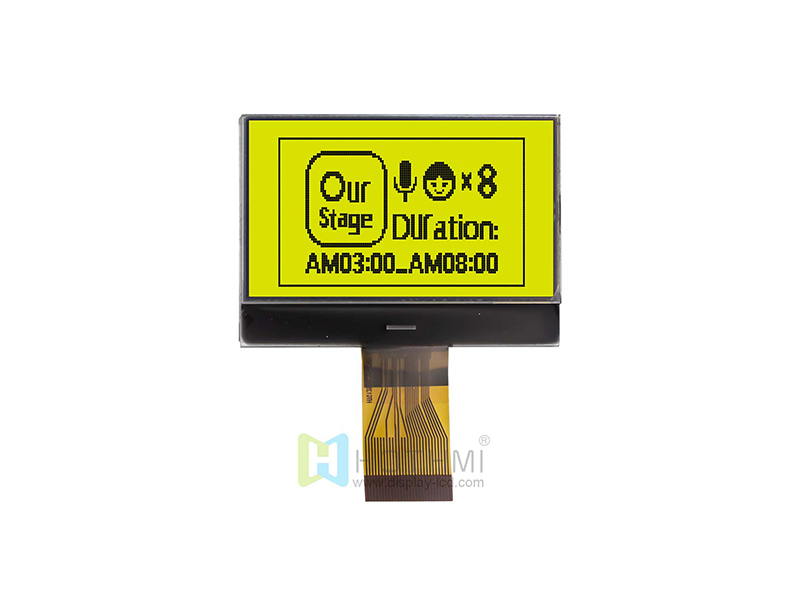

| 2.2-inch 128x64 yellow-green graphic dot matrix COG LCD display/STN+/ST7567 controller/Arduino HTG12864-20C-11Y-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 0.38x0.32 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |||

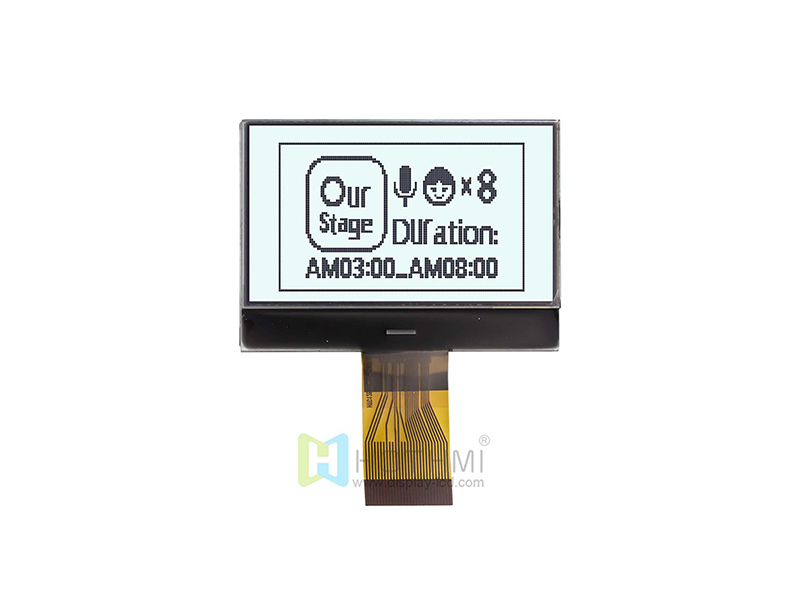

| 2.2-inch 128x64 graphic dot matrix COG LCD display/STN+graphic LCD display/Arduino HTG12864-20C-11W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | white | FPC-28PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |

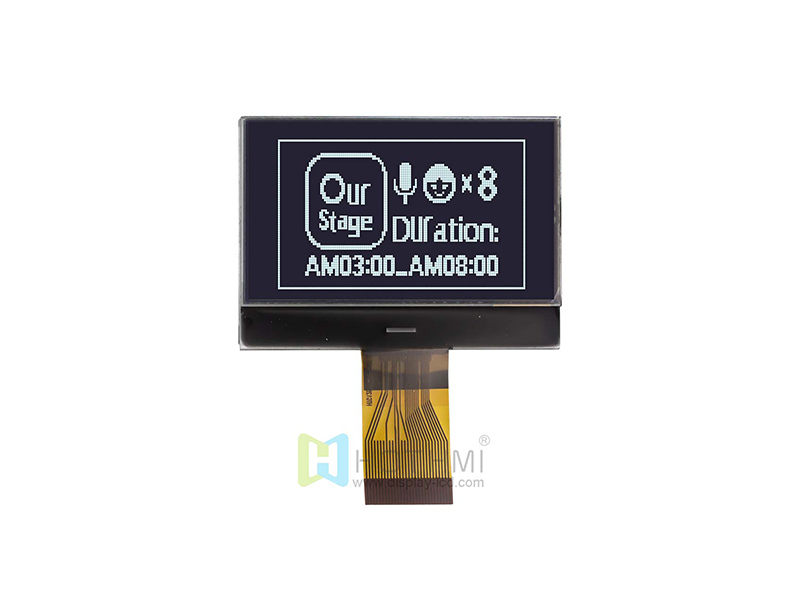

| 2.2-inch 128x64 graphic dot matrix COG LCD display/ST7567/Arduino HTG12864-20C-41W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | white | 0.38x0.32 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |
| 2.2 inch 128x64 white background gray character dot matrix COG LCD/FSTN+/ST7567 HTG12864-20C-31W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | white | FPC-28PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |

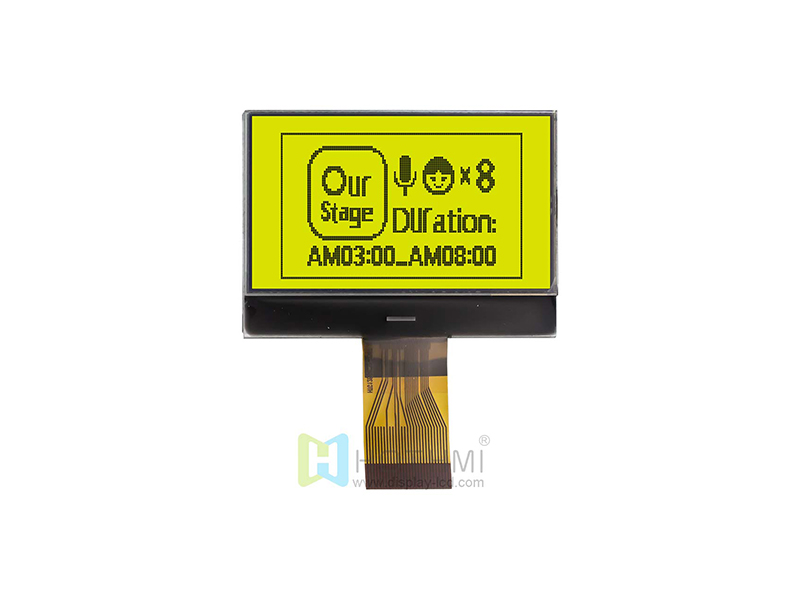

| 2.2-inch 128x64 COG dot matrix LCD display / yellow-green graphics COG / STN+ / ST7567 controller / Arduino HTG12864-20C-01Y-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | YG | FPC-28PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 |
