Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

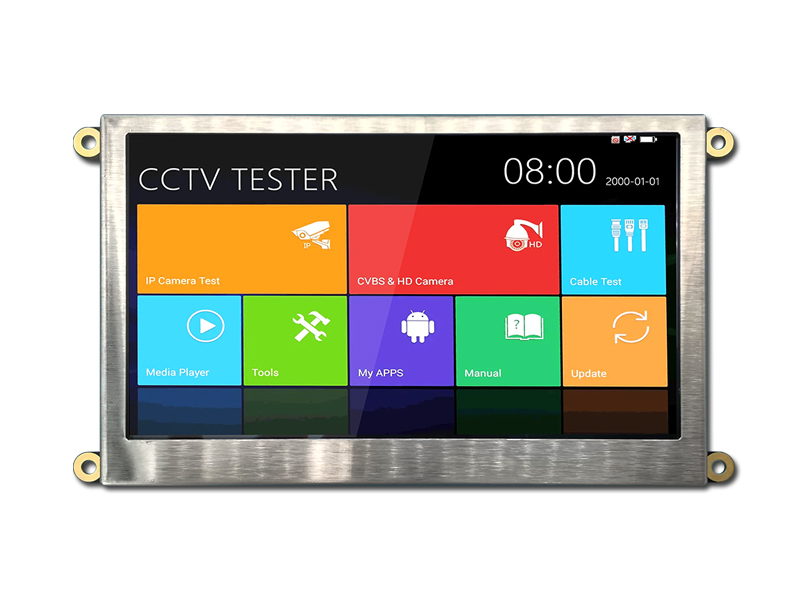

| 5 Inch For VGA TFT Module Display 800x480 Dots Panel With LCD Controller Board HTM-H050A7-B2 | TFT Module | 800x480 |
|
121.70x96.00x15.60 | 5.0 | 5.0 | 108.00x64.80 | Full view | 500cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 5.0V | T.B.D | ||

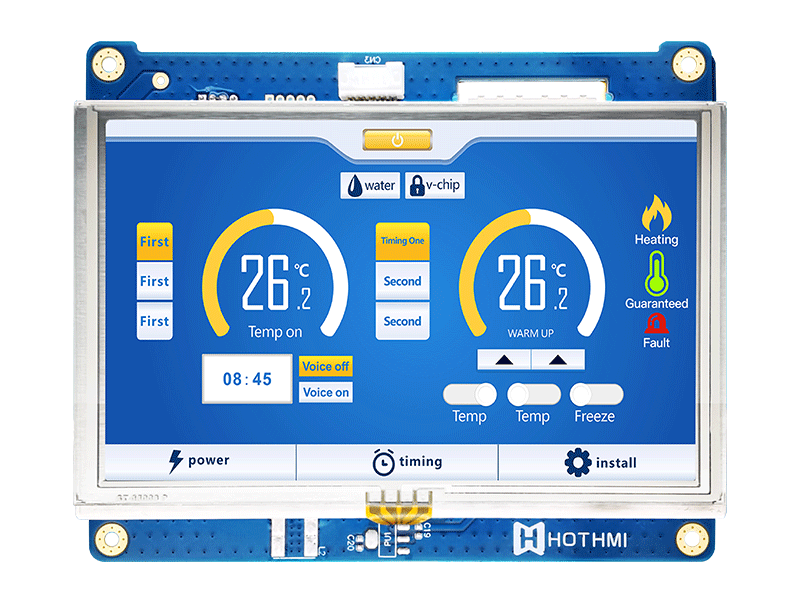

| 5 Inch 800x480 IPS Resistive TFT LCD Display Wide Temperature/HTM-H050A7-LVDS-USBRTP | TFT Module | 800x480 |
|
121.7x99x7.55mm | 5.0 | 5.0 | 108x64.8mm | Full view | 1000cd/m2 | 20pin | LVDS | With Resistive touch function | -30~80℃ | 3.3V | ST7262 | |

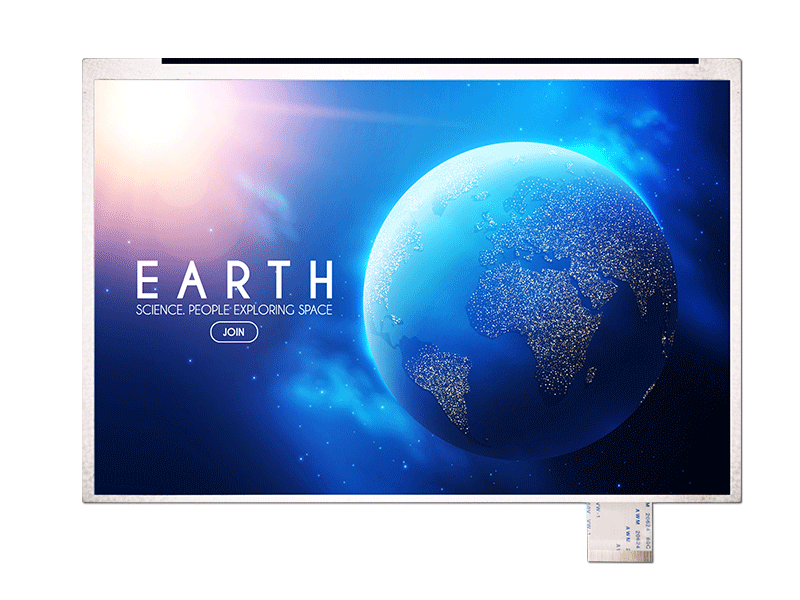

| 10.1inch 1920x1200 IPS VGA TFT Module Sunlight Readable/HTM-H101A04 | TFT LCD | 1920x1200 |
|
230.20x150.00x21.55 | 10.1 | 10.1 | 216.81x135.50 | Full view | 1000cd/m2 | VGA | Anti-static ESD 8KV | -20~60℃ | 12.0V | T.B.D | ||

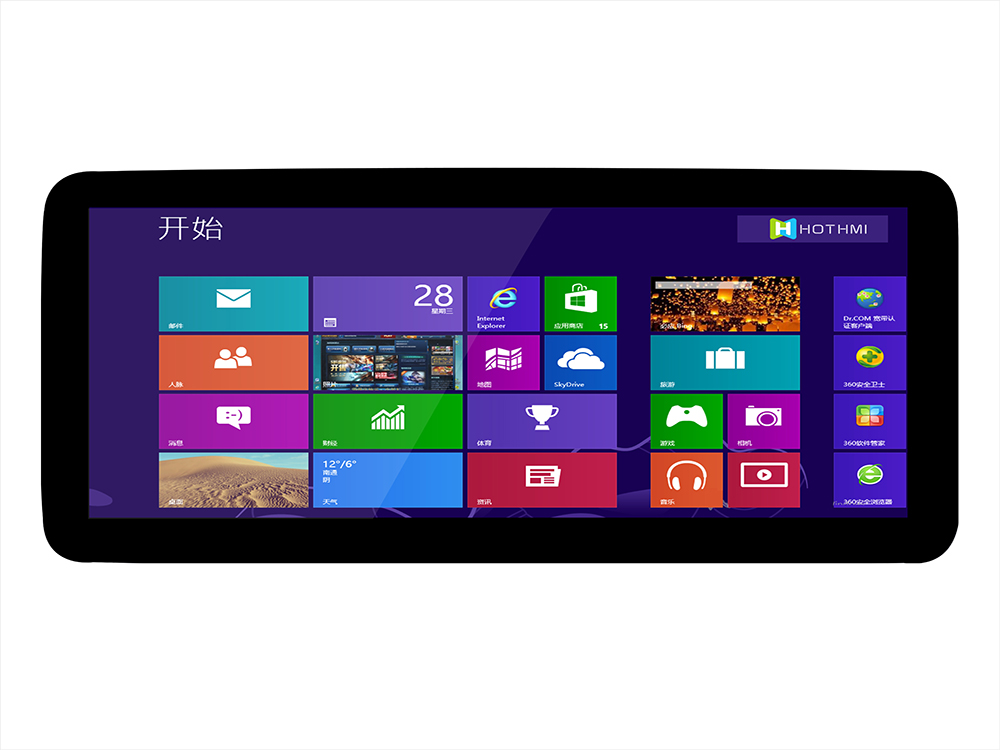

| 12.3" For VGA Signal Interface IPS TFT-LCD (For Raspberry Use) | DISPLAY | 1920x720 |
|
328.128x142.128 | 12.3 | 12.3 | 292.032x109.512 | Full view | 750cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 12V~24V | |||
| 15 inch TFT VGA interface | built-in USB interface drive-free capacitive touch screenTFT-150T71XGHDVUSDC | DISPLAY | 1024x768 |
|
376.00x298.00x51.00 | 15.0 | 15.0 | 303.00x226.00 | Full view | 350cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 9~24V | |||

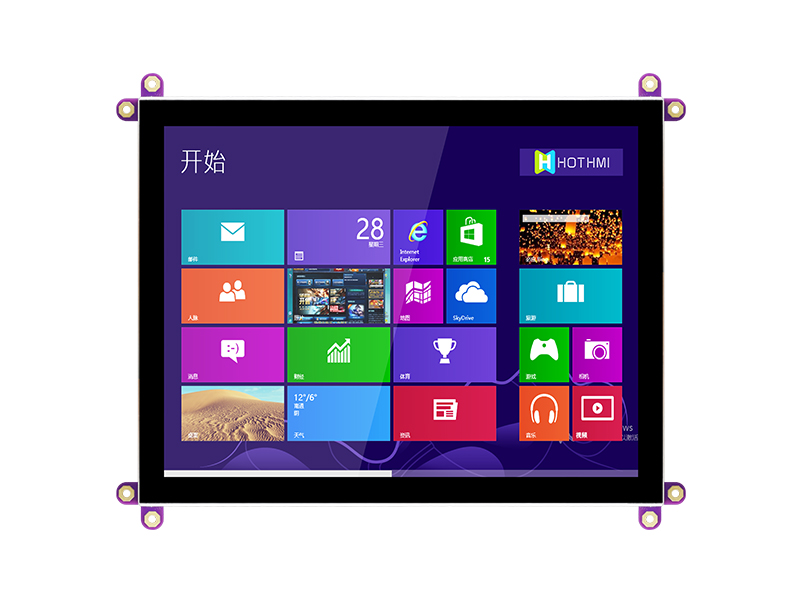

| 8.0 INCH TFT DISPLAY With USB Cap Touch | DISPLAY | 1024x768 |
|
203x161 | 8.0 | 8.0 | 162.05x121.54 | 12H | 650cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 9~24V | |||

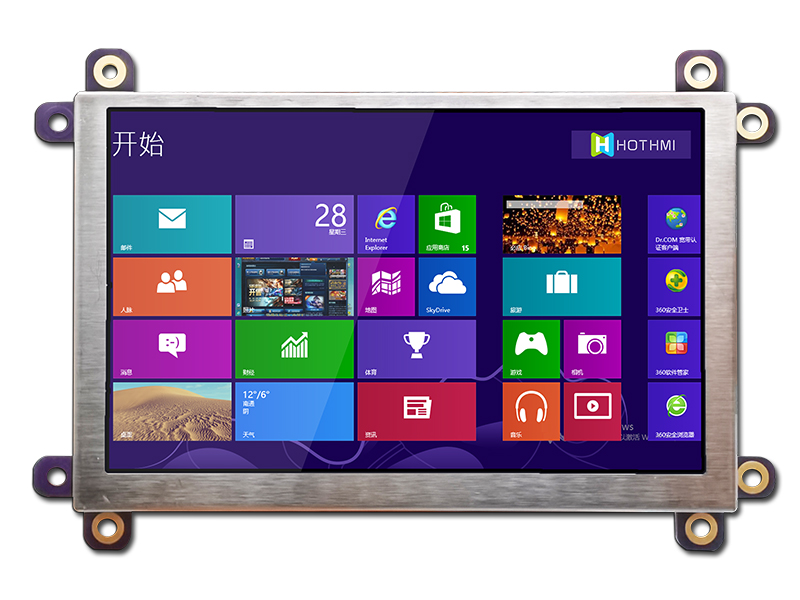

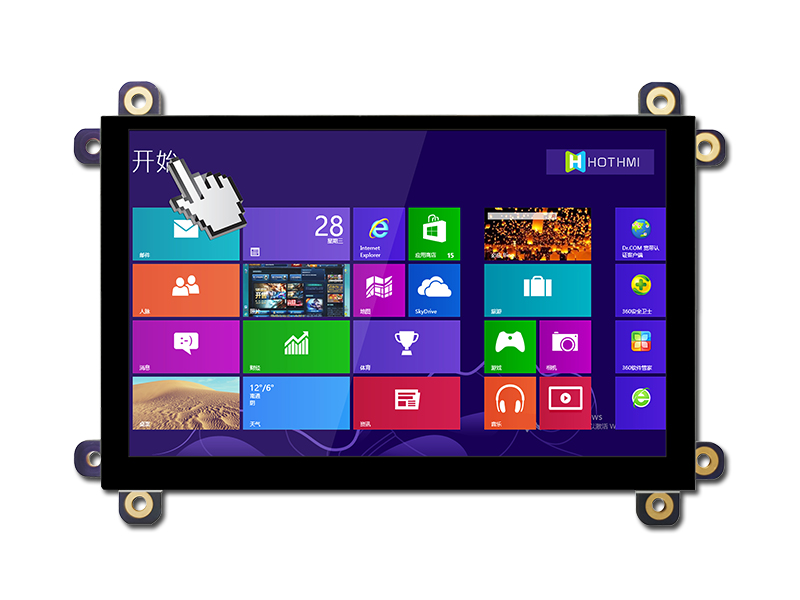

| 5 inch TFT module/800*480 resolution/ VGA interface/with capacitive touch screen/industrial grade/LCM-TFT050T61SVHDVUSDC | DISPLAY | 800x480 |
|
140.0x95.0x15.0 | 5.0 | 5.0 | 108.0x64.8 | Full view | 500cd/m2 | VGA | With USB Cap Touch | -20~70℃ | 5V/1A | |||
| 5.0 inch TFT/800*480 resolution/VGA interface/LCM-TFT050T61SVHDVNSDC | TFT LCM | 800x480 |
|
140.0x95.0x6.5 | 5.0 | 5.0 | 108.0x64.8 | Full View | 600cd/m2 | VGA | with CTP touch | -30~80℃ | 5.0V | |||

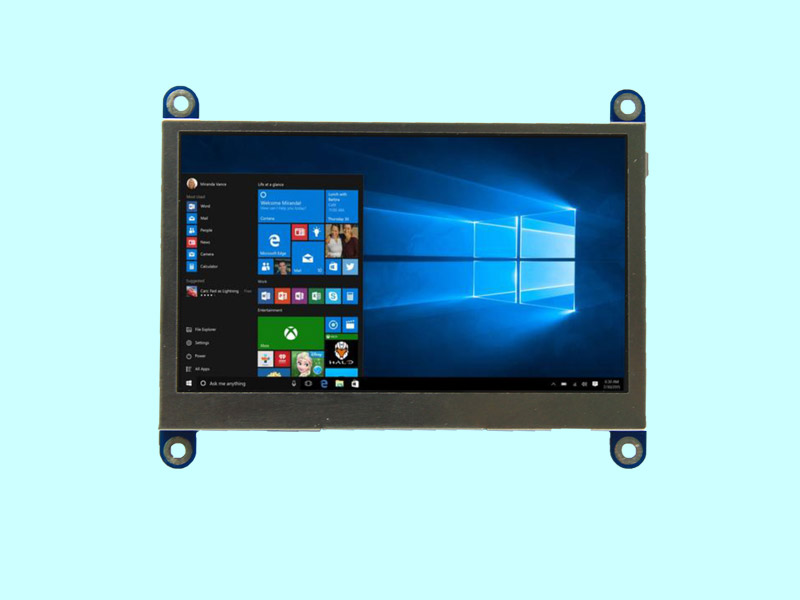

| 4.3 inch TFT/800*480 resolution/ interface/LCM-TFT043T6SVHDVN20Z | TFT Module | 800x480 |
|
120x68.20x5.20 | 4.3 | 4.3 | 95.04x53.86 | Full View | 500cd/m2 | FPC-20PIN | VGA | -30~80℃ | 5.0V | T.B.D | ||
| 4.3 inch TFT/800*480 resolution/interface/Raspberry Pi/Security monitor/LCM-TFT043T2SVHDVN19M | TFT Module | 800x480 |
|
105.5x67.2x5.8 | 4.3 | 4.3 | Full View | 500cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 3.3V |
