類型：TFT豎屏
顯示像素：480x800
外形尺寸 ：60.86x102.57x2.3
VA尺寸：4.3
AA尺寸 ：4.3
應用：儀器儀表

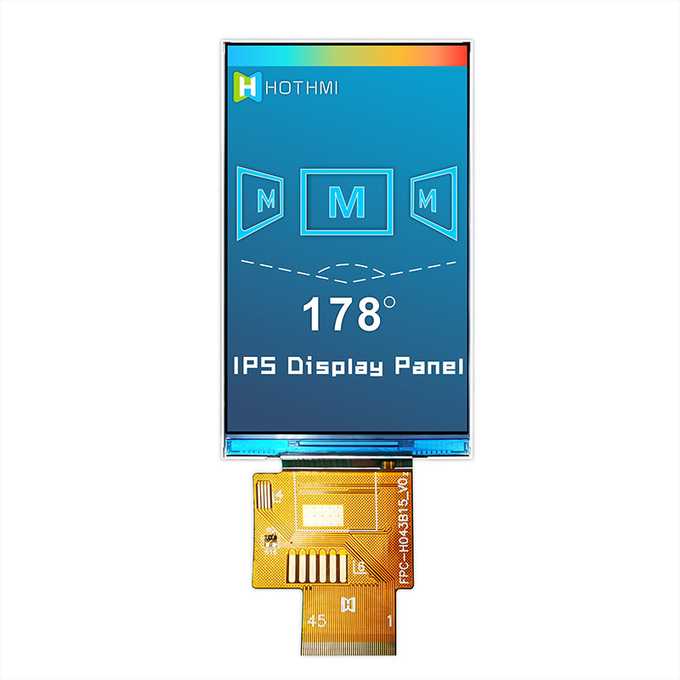

視角：全視角

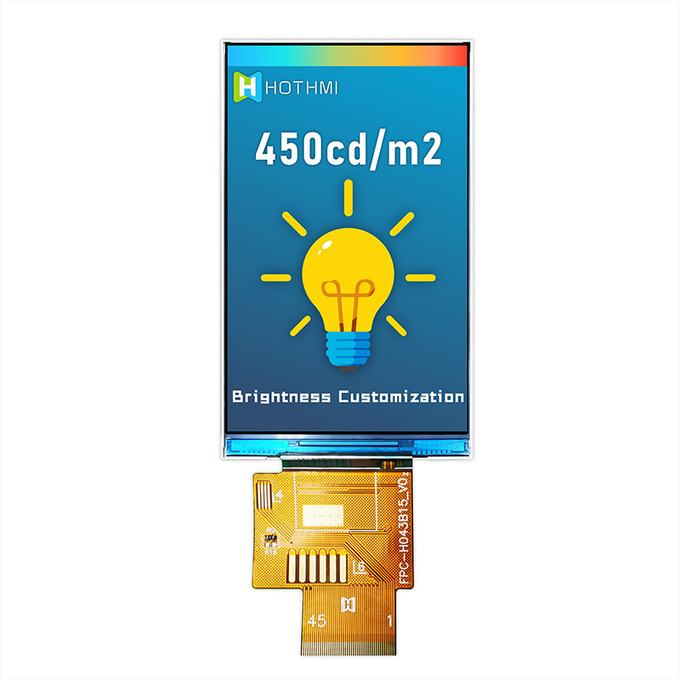

背光/亮度：450cd/m2
引腳：45pin

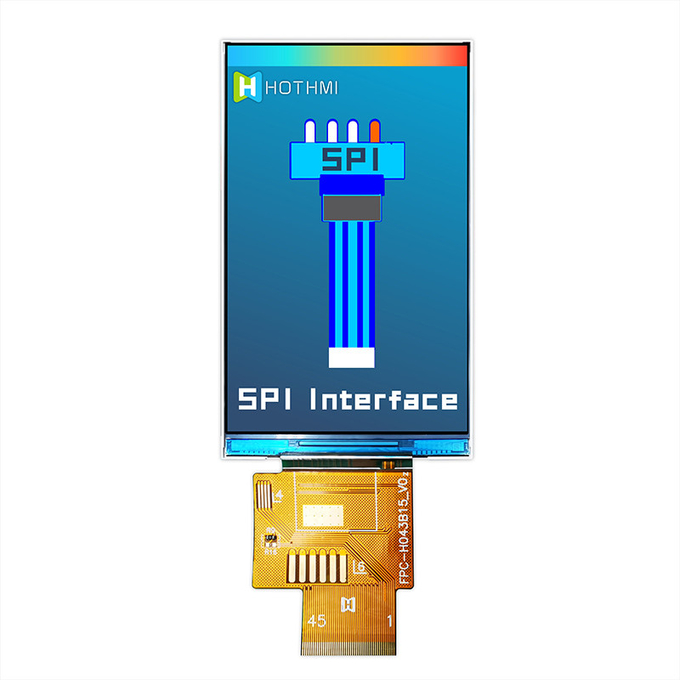

接口方式：SPI

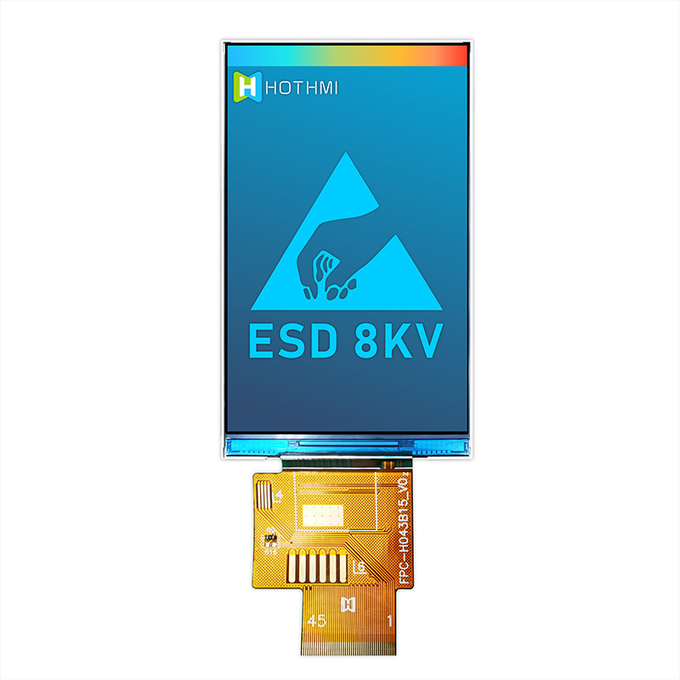

特殊說明：抗靜電ESD 8KV

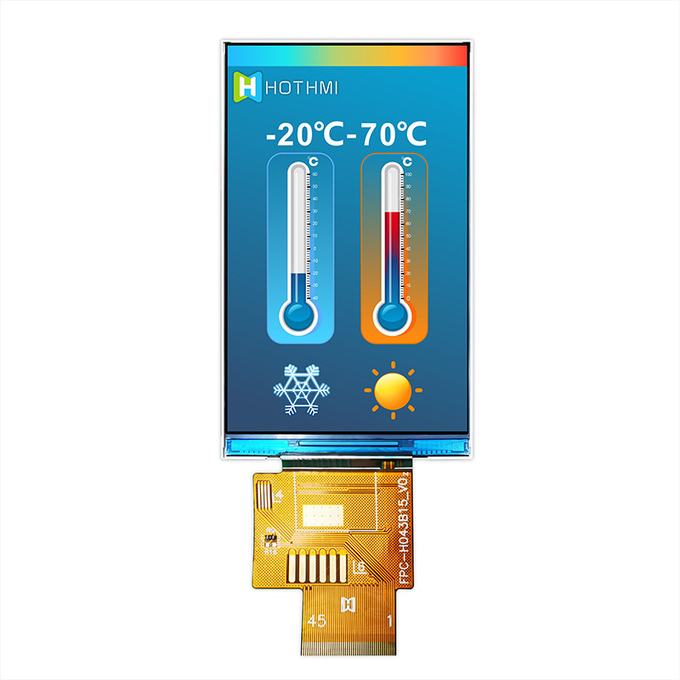

工作溫度：-20~70℃
供電電壓：2.8v
驅動芯片：ST7701S

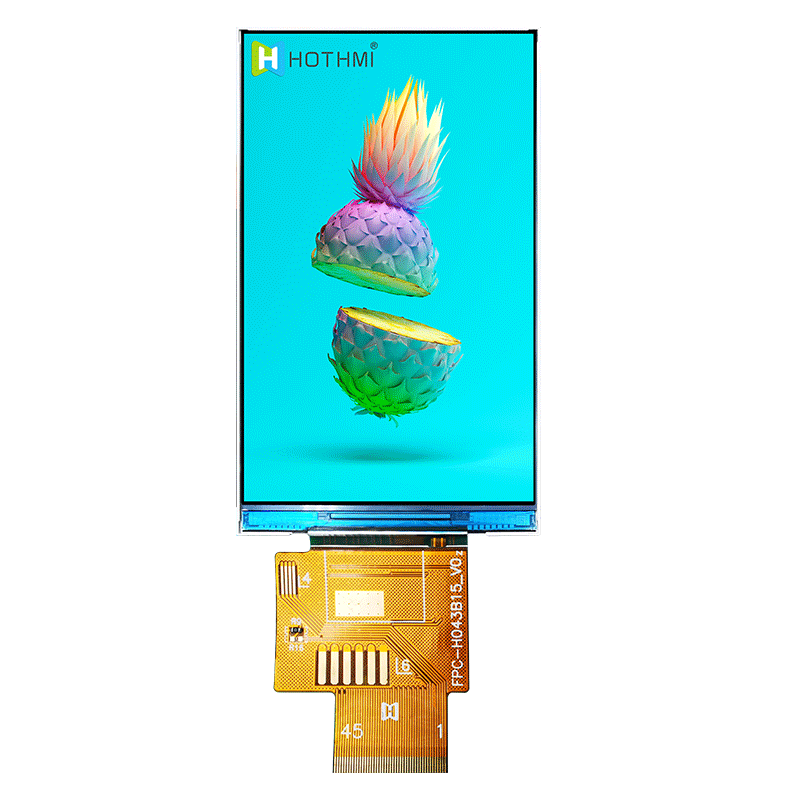

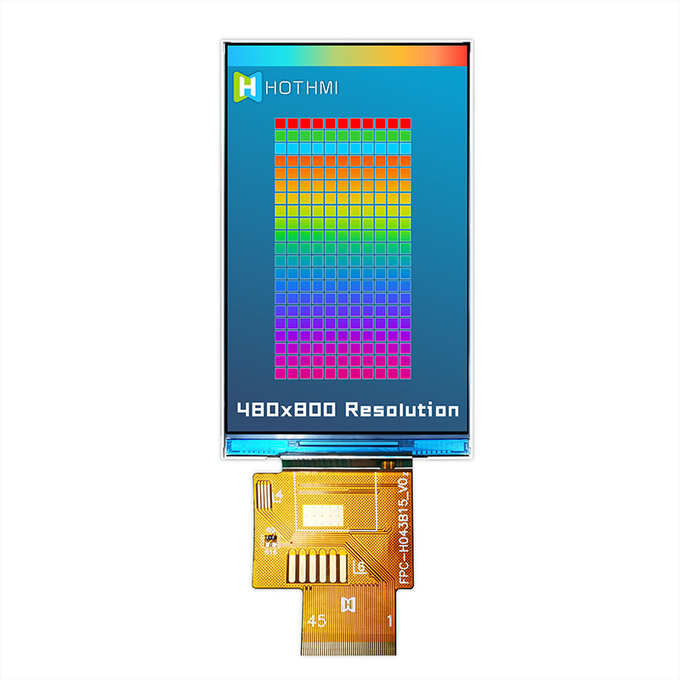

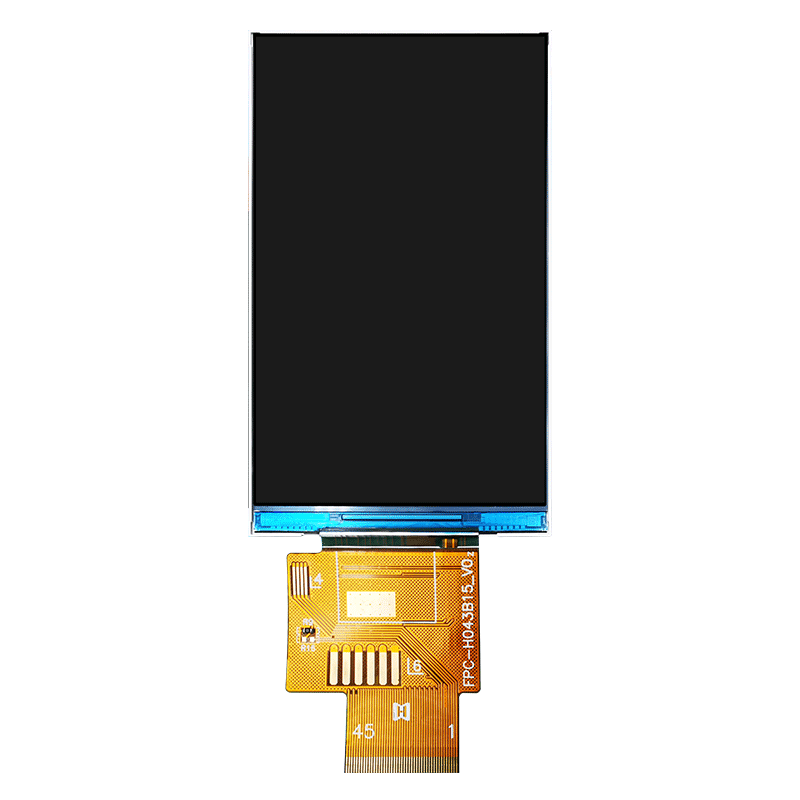

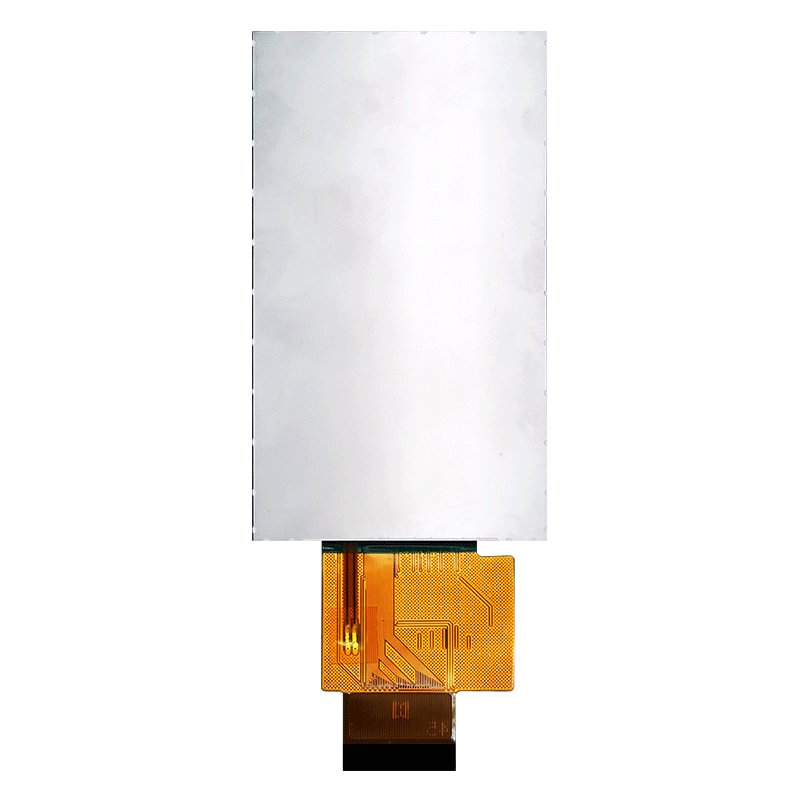

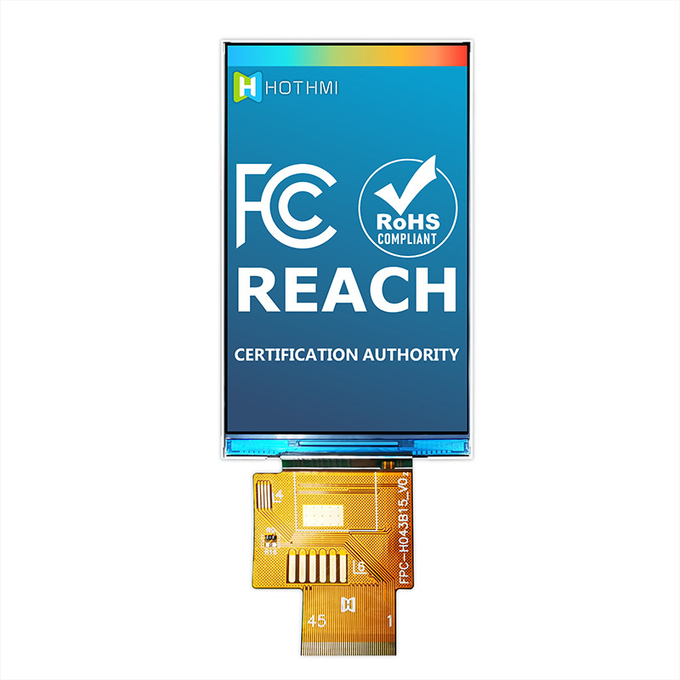

4.3寸 TFT LCD 顯示模塊 480X800分辨率 TFT LCD 顯示器制造商用于儀器儀表 H043B15WVIST4N45
TFT-H043B15WVIST4N45 | 4.3英寸IPS LCD顯示屏 | TFT LCD顯示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于儀器儀表
隆重推出 TFT-H043B15WVIST4N45，這是一款專為儀表應用設計的高品質 4.3 英寸 TFT LCD 顯示模塊。 該模塊具有 480x800 像素的分辨率和 IPS LCD 顯示屏，可提供清晰的圖像和鮮艷的色彩，非常適合顯示關鍵數據和信息。
該模塊由領先的 TFT LCD 顯示器制造商設計和制造，具有 -20℃ 至 70℃ 的寬溫度范圍，適用于各種環境。 其緊湊的尺寸和易于使用的界面使其易于集成到您現有的儀器系統中。
無論您是設計新儀器還是升級現有儀器，TFT-H043B15WVIST4N45 都能提供完成工作所需的可靠性和性能。 憑借其高質量的顯示屏和耐用的結構，該模塊一定能滿足您未來幾年的需求。
那為什么還要等？ 立即訂購您的 TFT-H043B15WVIST4N45 TFT LCD 顯示模塊，親身體驗不同之處！
General Feature
Item | Standard Value | Unit | ||

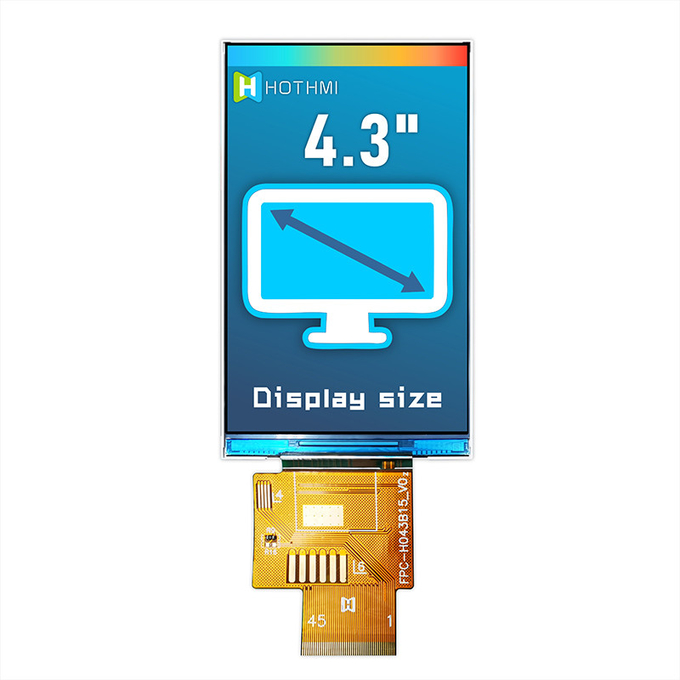

Display Size | 4.3 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 56.16x93.6mm | mm | ||

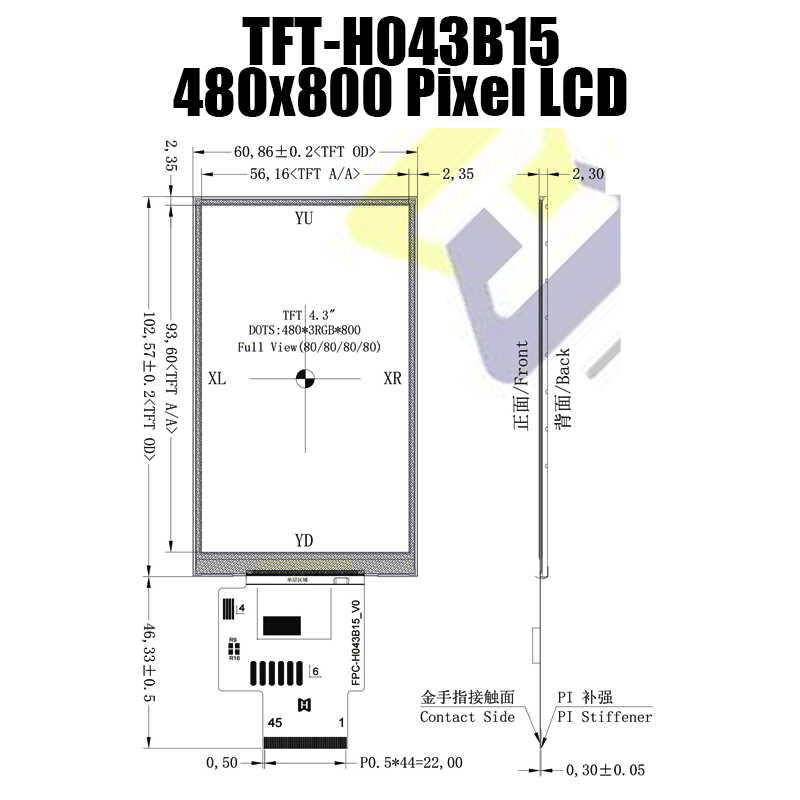

Outline Dimension | 60.86x102.57x2.3 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI+RGB | - | ||

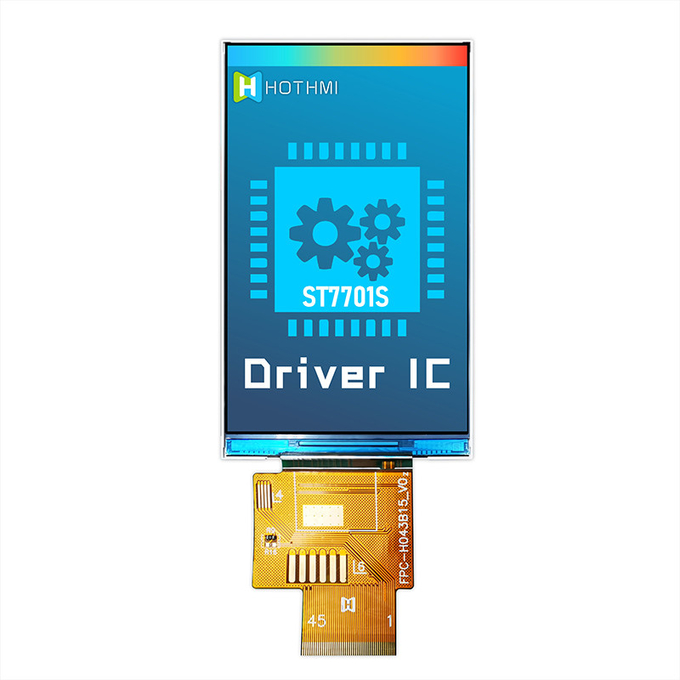

Driver IC | ST7701S | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
Pin Description
| Pin NO. | Symbol | Description |
| 1 | RTP-XR/CTP-SCL | Touch control pin |
| 2 | RTP-YD/CTP-SDA | Touch control pin |
| 3 | RTP-XL/CTP-INT | Touch control pin |
| 4 | RTP-YU/CTP-RES | Touch control pin |
| 5~6 | GND | Ground |
| 7 | VCI | Digital Power |
| 8 | IOVCC | Power Supply for I/O System |
| 9 | SDO | Serial data output pin used for the SPI Interface. |
| 10 | SDI | Serial data input/output bidirectional pin for SPI Interface. |
| 11 | SCL | Serial clock input for SPI interface. |
| 12 | CS | A chip select signal |
| 13 | RESX | TFT Reset Pin |
| 14~21 | DR[7~0] | Red data bus |
| 22~29 | DG[7~0] | Green data bus |
| 30~37 | DB[7~0] | Blue data bus |
38 |
DEN | Data input enable. Low: access enabled ; High: access inhibited |
| 39 | PCLK | Pixel clock input pin |
| 40 | HSD | Horizontal sync signal |
| 41 | VSD | Vertical sync signal |
| 42 | NC | No Connect |
| 43 | LEDK | LED Cathode |
| 44 | NC | No Connect |
| 45 | LEDA | LED Anode |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |

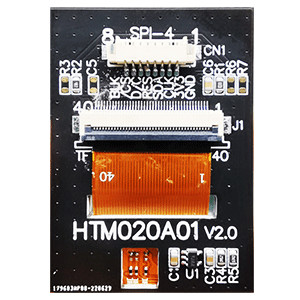

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

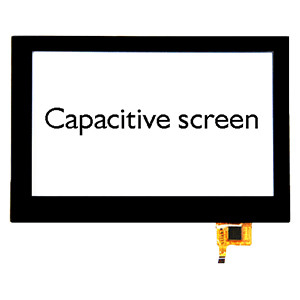

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
